LT3519EMSTRPBF - Analog Devices

Description: Up to 3000:1 True Color PWM™ Dimming n Wide Input Voltage Range Operation from 3V to 30V Transient Protection to 40V n Rail-to-Rail LED Current Sense from 0V to 45V n 45V, 750mA Internal Switch n Internal Schottky Diode n Constant-Current and Constant-Voltage Regulation n Boost, SEPIC, Buck-Boost Mode or Buck Mode Topology n Open LED Protection and Open LED Status Pin n Programmable Undervoltage Lockout with Hysteresis n Fixed Frequency: 400kHz (LT3519), 1MHz (LT3519-1), 2.2MHz (LT3519-2) n

Download LT3519EMSTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

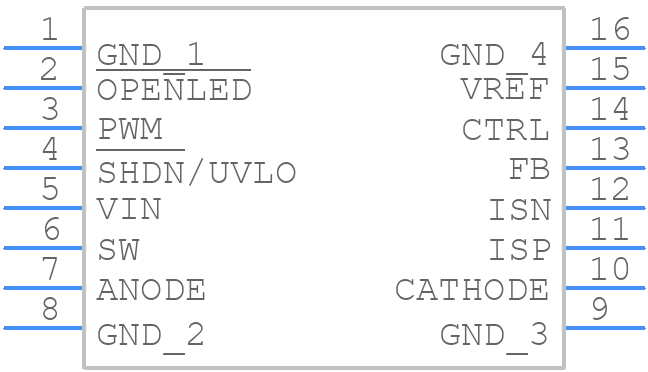

LT3519EMSTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3519EMSTRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A)..
click to zoom
3D Models
LT3519EMSTRPBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 Rev A)..
click to zoom

LT3519EMSTRPBF Details

  • Manufacturer Part Number:

    LT3519EMSTRPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3519EMSTRPBF Overview

Use the download button to access the LT3519EMSTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT351, or try a keyword search, such as Display Drivers
