LT3519IMS-2TRPBF - Analog Devices

Description: Up to 3000:1 True Color PWM™ Dimming n Wide Input Voltage Range Operation from 3V to 30V Transient Protection to 40V n Rail-to-Rail LED Current Sense from 0V to 45V n 45V, 750mA Internal Switch n Internal Schottky Diode n Constant-Current and Constant-Voltage Regulation n Boost, SEPIC, Buck-Boost Mode or Buck Mode Topology n Open LED Protection and Open LED Status Pin n Programmable Undervoltage Lockout with Hysteresis n Fixed Frequency: 400kHz (LT3519), 1MHz (LT3519-1), 2.2MHz (LT3519-2) n

Download LT3519IMS-2TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

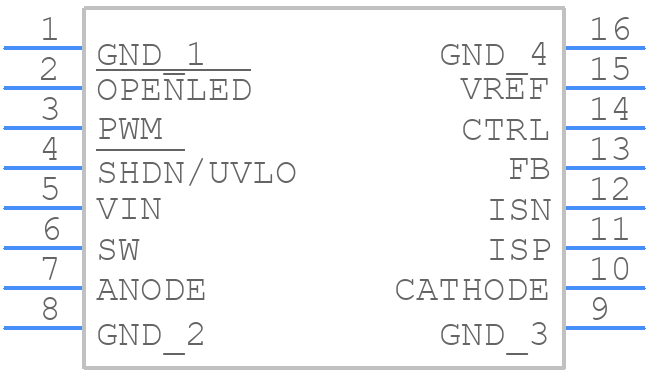

LT3519IMS-2TRPBF - Analog Devices - PCB symbol
