LT3571EUD#TRPBF - Analog Devices

Description: Switching Voltage Regulators 75V DC/DC Converter for APD Bias

Download LT3571EUD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

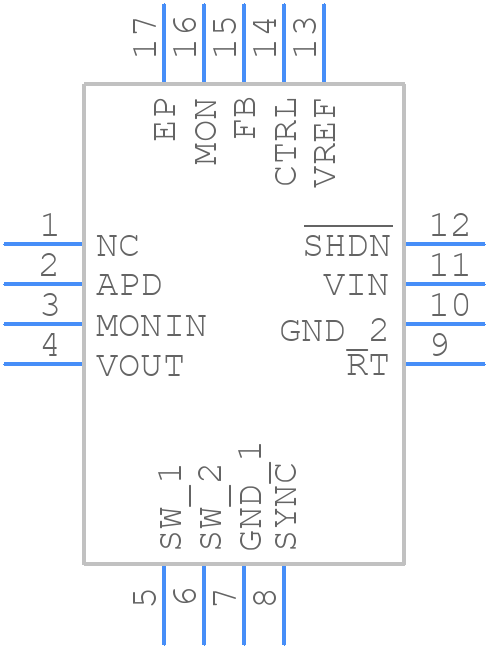

Symbol
LT3571EUD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3571EUD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm
click to zoom
3D Models
LT3571EUD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm
click to zoom

LT3571EUD#TRPBF Details

  • Manufacturer Part Number:

    LT3571EUD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.50 MM PITCH, LEAD FREE, PLASTIC, MO-220WEED-2, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    0.57 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    2.2 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2300 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3571EUD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3571EUD involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The compensation network for the LT3571EUD involves selecting the right values for the compensation resistors and capacitors. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements and the desired transient response.
  • The maximum input voltage that the LT3571EUD can handle is 42V, but it's recommended to keep the input voltage below 36V to ensure reliable operation and to prevent damage to the IC.
  • To ensure the stability of the LT3571EUD, it's essential to follow the recommended PCB layout guidelines, use the correct compensation network, and ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the input voltage should be well-regulated, and the output load should be within the recommended range.
  • The thermal derating curve for the LT3571EUD is not explicitly provided in the datasheet, but it can be estimated based on the maximum junction temperature (150°C) and the thermal resistance of the package (45°C/W). A good rule of thumb is to derate the output current by 1.5mA/°C above 25°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3571EUD#TRPBF Overview

Use the download button to access the LT3571EUD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT357, or try a keyword search, such as Switching Regulator or Controllers
