LT3650EDD-8.4#PBF - Analog Devices

Description: Battery Management High Voltage 2 Amp Monolithic Li-Ion Battery Charger

Download LT3650EDD-8.4#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

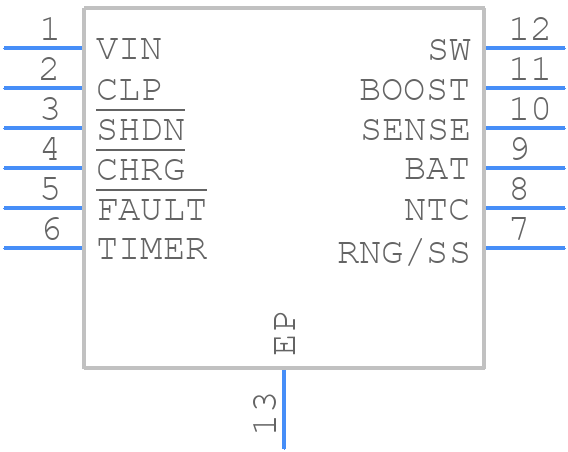

LT3650EDD-8.4#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3650EDD-8.4#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT3650EDD-8.4#PBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT3650EDD-8.4#PBF Details

  • Manufacturer Part Number:

    LT3650EDD-8.4#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3650EDD-8.4#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3650EDD-8.4 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage can be stabilized by adding a 10nF ceramic capacitor in parallel with the output capacitor, and by using a low-ESR output capacitor.
  • The maximum ambient temperature range for the LT3650EDD-8.4 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to ensure proper thermal management and heat sinking.
  • Yes, the LT3650EDD-8.4 is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and that the components are properly soldered to withstand the vibrations.
  • To troubleshoot issues with the LT3650EDD-8.4, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance.
