LT3743IFEPBF - Analog Devices

Description: PWM Dimming Provides Up to 3000:1 Dimming Ratio n CTRL_SEL Dimming Provides Up to 3000:1 Dimming Ratio Between Any Current n Three-State Current Control for Color Mixing n ±6% Current Regulation Accuracy n 6V to 36V Input Voltage Range n Average Current Mode Control n 2µs Maximum Recovery Time Between Any Current Regulation State n <1µA Shutdown Current n Output Voltage Regulation and Open-LED Protection n Thermally Enhanced 4mm × 5mm QFN and 28-Pin FE Package

Download LT3743IFEPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

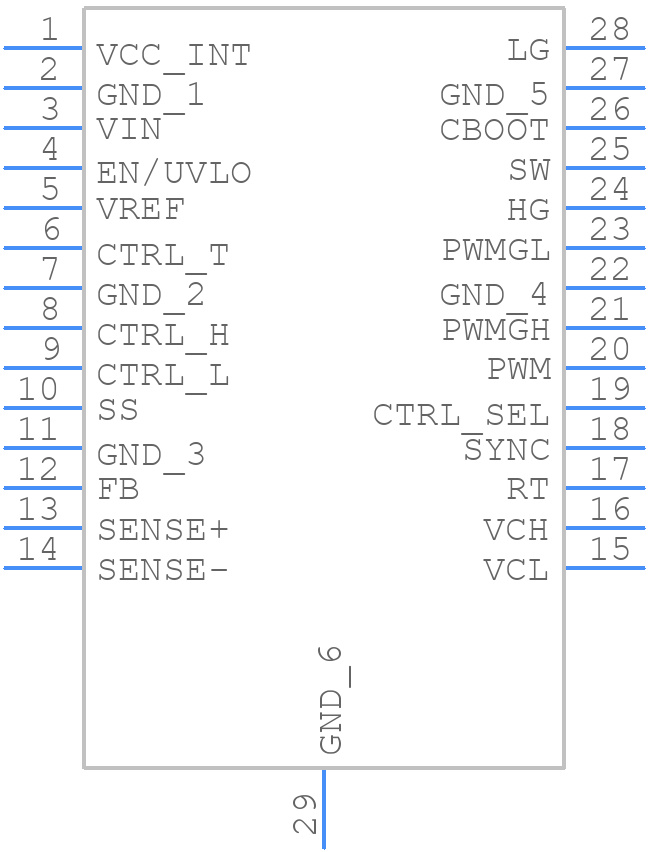

LT3743IFEPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3743IFEPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
click to zoom
3D Models
LT3743IFEPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for LT3743IFEPBF
  • Part Number LT3743IFEPBF
  • Manufacturer Analog Devices
  • Pin Count 29
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
  • Released Date Jan 11, 2017
  • Last Modified Date May 20, 2025 8:07 AM UTC
  • Pinout / Pin List Click Here (Member Only)
