LT3743IFETRPBF - Analog Devices

Description: PWM Dimming Provides Up to 3000:1 Dimming Ratio n CTRL_SEL Dimming Provides Up to 3000:1 Dimming Ratio Between Any Current n Three-State Current Control for Color Mixing n ±6% Current Regulation Accuracy n 6V to 36V Input Voltage Range n Average Current Mode Control n 2µs Maximum Recovery Time Between Any Current Regulation State n <1µA Shutdown Current n Output Voltage Regulation and Open-LED Protection n Thermally Enhanced 4mm × 5mm QFN and 28-Pin FE Package

Download LT3743IFETRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

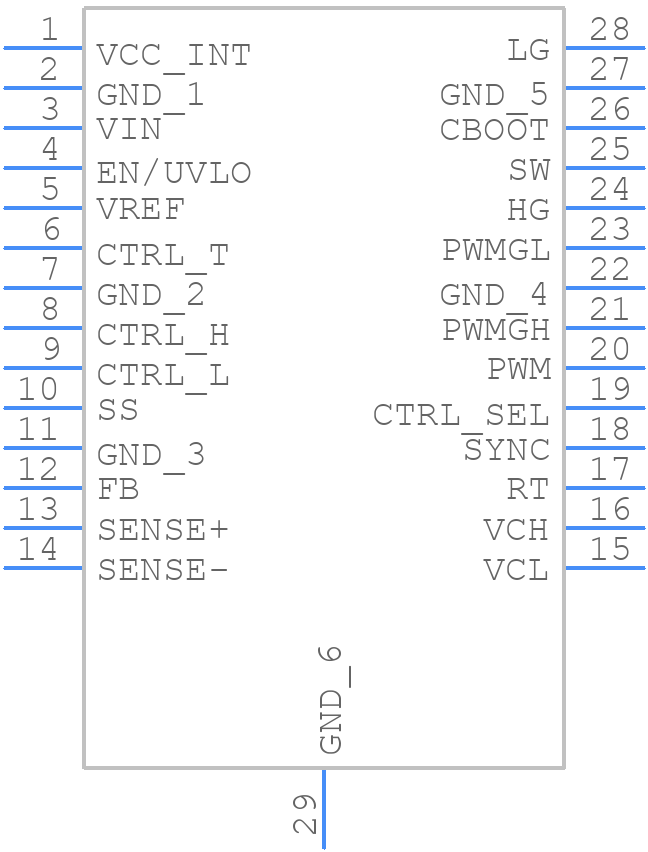

LT3743IFETRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3743IFETRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
click to zoom
3D Models
LT3743IFETRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
click to zoom

LT3743IFETRPBF Details

  • Manufacturer Part Number:

    LT3743IFETRPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3743IFETRPBF Overview

Use the download button to access the LT3743IFETRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT374, or try a keyword search, such as Switching Regulator or Controllers
