LT3755EMSE-1#PBF - Analog Devices

Description: LT3755EMSE-1#PBF, DC-DC Controller, 16-Pin, MSOP EP

Download LT3755EMSE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

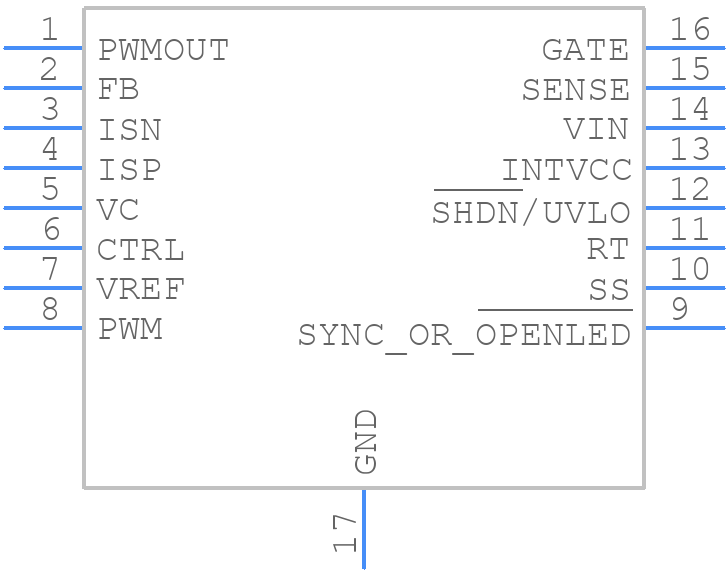

Symbol
LT3755EMSE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3755EMSE-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom
3D Models
LT3755EMSE-1#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LT3755EMSE-1#PBF Details

  • Manufacturer Part Number:

    LT3755EMSE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    14

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    1.05 MHz

LT3755EMSE-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3755EMSE-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF with an ESR of 10mΩ or less is recommended. Additionally, the output voltage can be stabilized by adding a 10nF capacitor in parallel with the output capacitor.
  • The maximum ambient temperature range for the LT3755EMSE-1#PBF is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LT3755EMSE-1#PBF can be used in a synchronous buck configuration. In this configuration, the internal switch and the external synchronous rectifier switch are turned on and off alternately to reduce power losses and improve efficiency.
  • The input capacitor value for the LT3755EMSE-1#PBF can be calculated using the following formula: Cin = (Iout x ΔI / (ΔV x f)). Where Cin is the input capacitance, Iout is the output current, ΔI is the input ripple current, ΔV is the input voltage ripple, and f is the switching frequency.
