LT3755EUD#TRPBF - Analog Devices

Description: IC LED DRIVER CTRLR DIM 16QFN

Download LT3755EUD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

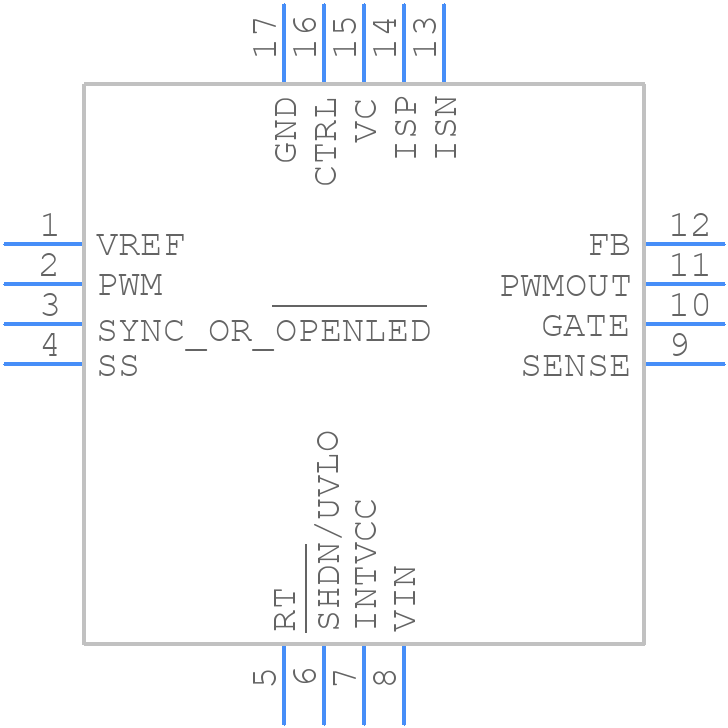

LT3755EUD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3755EUD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm-1
click to zoom
3D Models
LT3755EUD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm-1
click to zoom

LT3755EUD#TRPBF Details

  • Manufacturer Part Number:

    LT3755EUD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-220WEED-2, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    14

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3755EUD#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3755EUD is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the feedback resistor.
  • The maximum output current that the LT3755EUD can deliver is 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and reliability.
  • To protect the LT3755EUD from overcurrent and overheating, it's recommended to add overcurrent protection circuitry, such as a current sense resistor and a comparator, and to ensure proper thermal design and heat sinking.
  • Yes, the LT3755EUD can be used in high-temperature applications, but it's essential to ensure that the device is properly derated and that the maximum junction temperature is not exceeded. The device is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C.
