LT3758AHMSE#PBF - Analog Devices

Description: Switching Voltage Regulators High Input Voltage, Boost, Flyback, SEPIC and Inverting Controller

Download LT3758AHMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

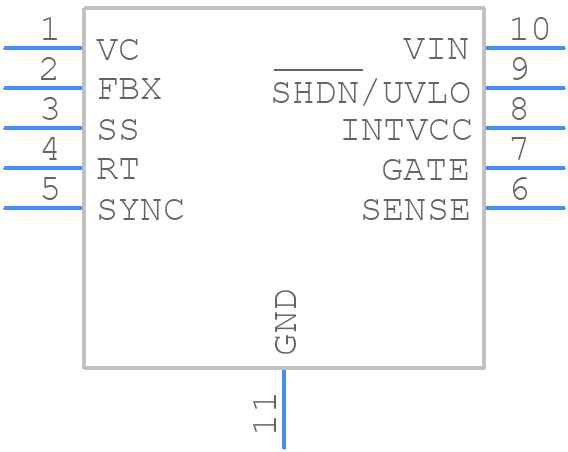

Symbol
LT3758AHMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3758AHMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE - 10-Lead Plastic MSOP _1
click to zoom
3D Models
LT3758AHMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE - 10-Lead Plastic MSOP _1
click to zoom

LT3758AHMSE#PBF Details

  • Manufacturer Part Number:

    LT3758AHMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    5.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3758AHMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3758AHMSE#PBF is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
  • The maximum output current that the LT3758AHMSE#PBF can deliver is 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and reliability.
  • The output voltage of the LT3758AHMSE#PBF can be programmed using the FB (feedback) pin and the VOUT pin. The output voltage is determined by the ratio of the resistors connected between the FB pin and the VOUT pin, and the voltage reference (VREF) of the device.
  • The thermal shutdown temperature of the LT3758AHMSE#PBF is typically 150°C, but it can vary depending on the specific application and operating conditions.
