LT3763HFE#TRPBF - Analog Devices

Description: Switching Voltage Regulators 60V, High Current, Step-Down, LED-Driver Controller

Download LT3763HFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

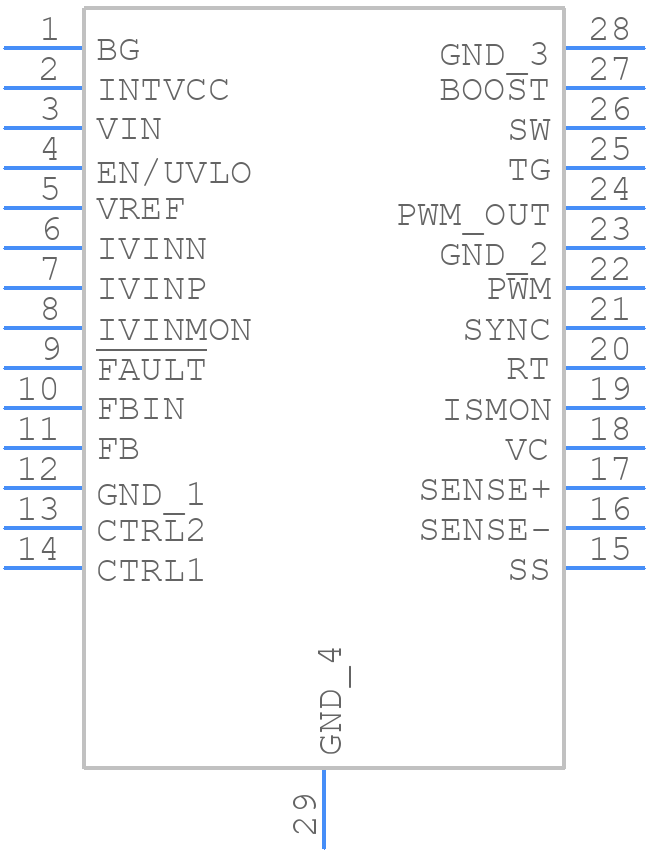

Symbol
LT3763HFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3763HFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_1
click to zoom
3D Models
LT3763HFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_1
click to zoom

LT3763HFE#TRPBF Details

  • Manufacturer Part Number:

    LT3763HFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3763HFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3763HFE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure stability, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to decouple the input and output with suitable capacitors, and use a compensation network if necessary. Also, verify that the output voltage is within the specified range and that the input voltage is within the recommended operating range.
  • The LT3763HFE can operate in an ambient temperature range of -40°C to 125°C. However, the junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating.
  • Yes, the LT3763HFE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured with a high level of quality and reliability. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT3763HFE, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the component values and layout meet the recommended guidelines in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3763HFE#TRPBF Overview

Use the download button to access the LT3763HFE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT376, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
