LT3791EFE#TRPBF - Analog Devices

Description: LED Lighting Drivers 4 Switch Buck-Boost LED Driver Controller

Download LT3791EFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

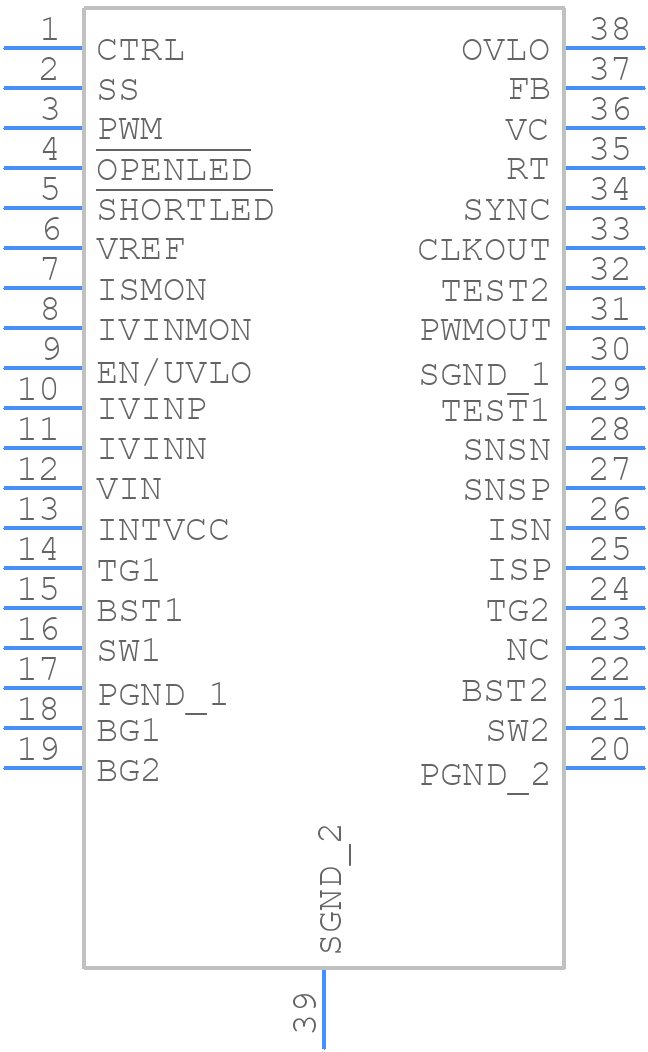

Symbol
LT3791EFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3791EFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LT3791EFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom

LT3791EFE#TRPBF Details

  • Manufacturer Part Number:

    LT3791EFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    9

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    4.7 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3791EFE#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3791EFE is 100V, but it's recommended to keep it below 80V for reliable operation.
  • To ensure the LT3791EFE operates within its SOA, make sure to follow the guidelines in the datasheet for input voltage, output current, and junction temperature. Also, use the thermal derating curves to ensure the device doesn't overheat.
  • For optimal PCB layout, follow the guidelines in the datasheet and application notes. Keep the input and output capacitors close to the device, use a solid ground plane, and minimize trace lengths and loops. Also, consider using a shielded inductor and a common-mode choke to reduce EMI.
  • To select the right inductor, consider the output current, switching frequency, and inductor core material. Use the inductor selection guide in the datasheet and application notes to determine the optimal inductor value and type.
  • The SYNC pin allows the user to synchronize the switching frequency of the LT3791EFE with an external clock signal. This can be useful in noise-sensitive applications or when multiple converters need to be synchronized. To use the SYNC pin, connect it to an external clock signal with a frequency between 100kHz and 1MHz.
