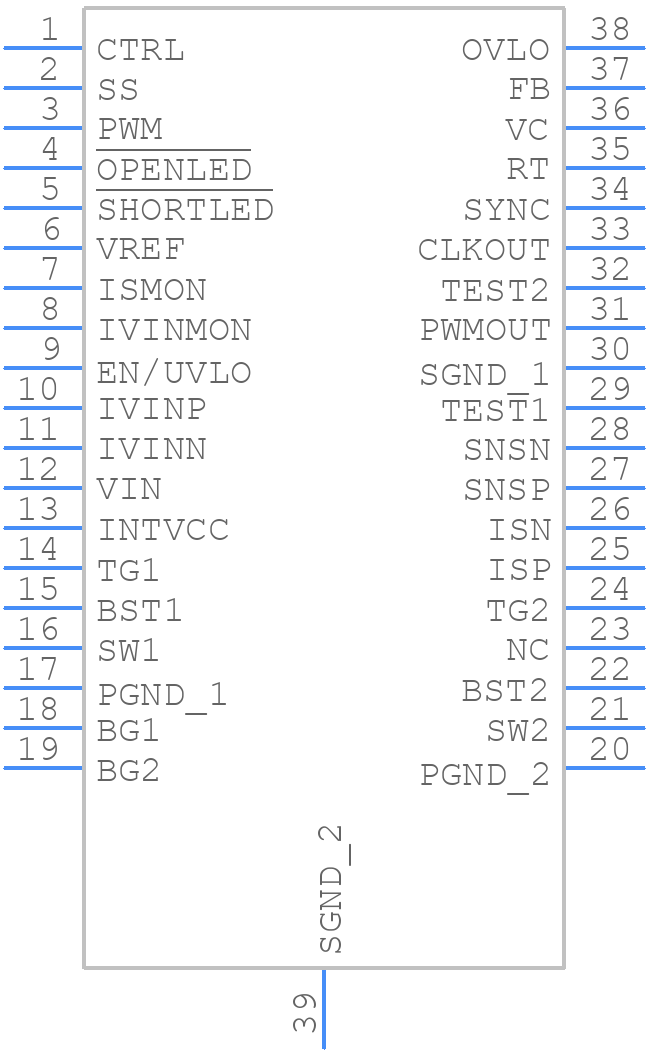

LT3791HFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3791HFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LT3791HFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom

LT3791HFE#PBF Details

  • Manufacturer Part Number:

    LT3791HFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    9

  • Number of Terminals:

    38

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    4.7 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3791HFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT3791HFE#PBF can handle is 100V, but it's recommended to operate within 60V to ensure reliable operation.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor.
  • The maximum output current that the LT3791HFE#PBF can deliver is 1.5A, but it's recommended to operate within 1A to ensure reliable operation and minimize thermal stress.
  • To configure the LT3791HFE#PBF for a specific output voltage, you need to select the appropriate resistors for the feedback network (R1 and R2) and the voltage divider network (R3 and R4) according to the datasheet's equations and guidelines.
  • The EN (enable) pin on the LT3791HFE#PBF is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled.
