LT3791HFE-1#PBF - Analog Devices

Description: Linear Technology LT3791HFE-1#PBF, LED Driver, 9-Digits 18-Segments, 4.7 → 60 V, 38-Pin TSSOP

Download LT3791HFE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

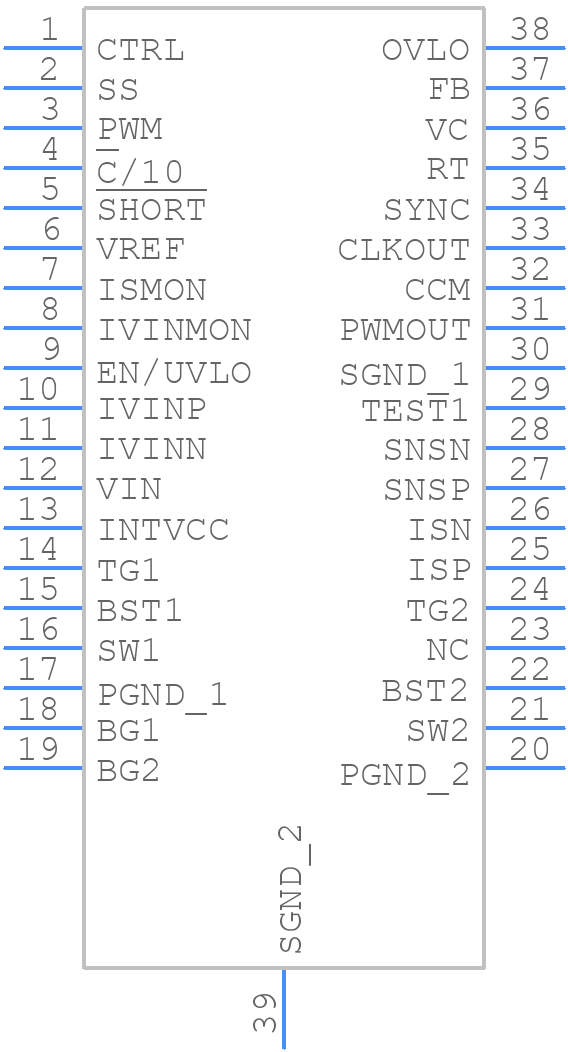

Symbol
LT3791HFE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3791HFE-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LT3791HFE-1#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom

LT3791HFE-1#PBF Details

  • Manufacturer Part Number:

    LT3791HFE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    735 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3791HFE-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3791HFE-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output voltage is set correctly. Additionally, add a 10nF capacitor between the VCC pin and GND to improve stability.
  • The maximum ambient temperature range for the LT3791HFE-1#PBF is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT3791HFE-1#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
  • To troubleshoot issues with the LT3791HFE-1#PBF, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.
