LT3840MPFE#PBF - Analog Devices

Description: Wide Input Range Synchronous Regulator Controller with Accurate Current Limit

Download LT3840MPFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

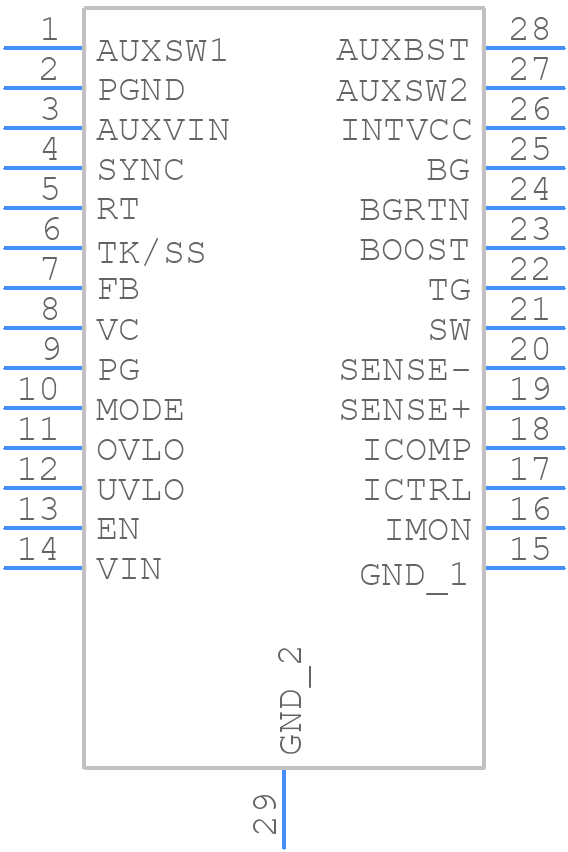

Symbol
LT3840MPFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3840MPFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_1
click to zoom
3D Models
LT3840MPFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_1
click to zoom

LT3840MPFE#PBF Details

  • Manufacturer Part Number:

    LT3840MPFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EA)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    60 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    320 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3840MPFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LT3840MPFE. Keep the input and output capacitors close to the IC, use a solid ground plane, and minimize the length of the high-current paths. Also, ensure that the feedback network is routed away from the high-current paths to prevent noise coupling.
  • Choose input capacitors with low ESR and high ripple current rating to minimize voltage ripple and ensure stable operation. For output capacitors, select ones with low ESR and high capacitance to reduce output voltage ripple and improve transient response.
  • The LT3840MPFE is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
  • Yes, the LT3840MPFE is available in a variety of grades, including the MP grade which is suitable for high-reliability applications, and the HQ grade which is suitable for automotive applications. However, it's essential to review the specific requirements of your application and ensure that the device meets those requirements.
  • Common issues with the LT3840MPFE can often be traced back to poor PCB layout, inadequate input and output capacitors, or incorrect component values. Check the datasheet for recommended component values and PCB layout guidelines, and use simulation tools or a oscilloscope to debug the issue.
