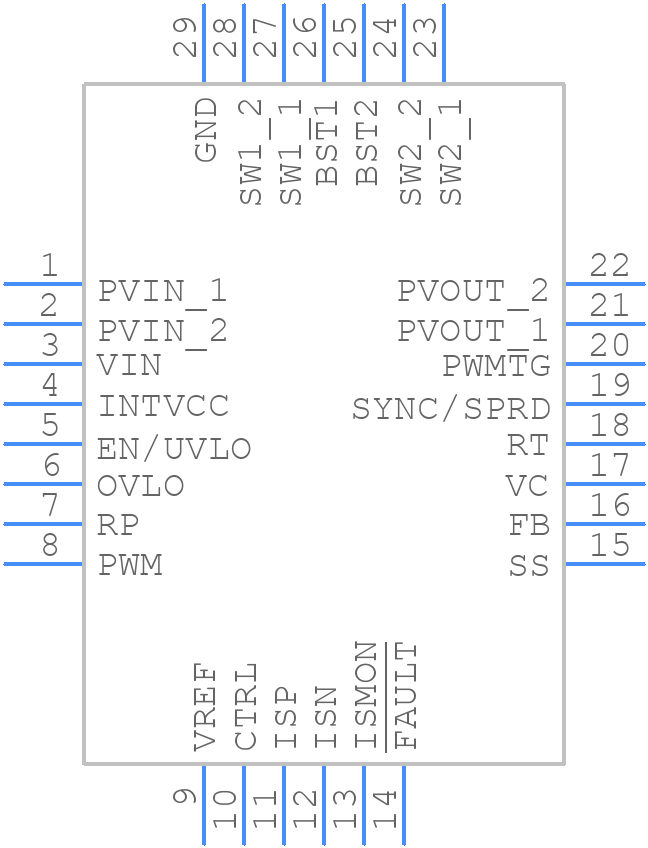

LT3942HUFD#TRPBF - Analog Devices

LT3942HUFD#TRPBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the thermal path short and using a large copper area for heat sinking can help to reduce thermal resistance.
• How do I ensure reliable start-up and operation in high-temperature environments?
  To ensure reliable start-up and operation in high-temperature environments, it is recommended to follow proper PCB design and layout guidelines, use a sufficient input capacitor, and ensure that the input voltage is within the recommended range. Additionally, the device should be operated within its specified temperature range, and thermal management techniques such as heat sinking and airflow should be employed to keep the device temperature within safe limits.
• What are the implications of operating the device at a lower input voltage than the recommended minimum?
  Operating the device at a lower input voltage than the recommended minimum can result in reduced performance, including lower output voltage accuracy, reduced output current capability, and increased dropout voltage. It may also affect the device's ability to regulate the output voltage, leading to instability or oscillation.
• How do I troubleshoot issues with the device's output voltage regulation?
  To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current to ensure they are within the specified ranges. Verify that the device is properly configured and that the feedback network is correct. Check for any signs of overheating, and ensure that the device is properly heat sunk. If the issue persists, consult the datasheet and application notes for further guidance.
• What are the EMI and RFI considerations for the LT3942HUFD#TRPBF?
  The LT3942HUFD#TRPBF is a switching regulator, and as such, it can generate electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, it is recommended to use proper PCB layout and design techniques, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, the device should be operated within its specified frequency range, and the output voltage should be filtered to reduce high-frequency noise.
