LT3950JMSE#PBF - Analog Devices

Description: 60V, 1.5A LED Driver with Internal Exponential Scale Dimming

Download LT3950JMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

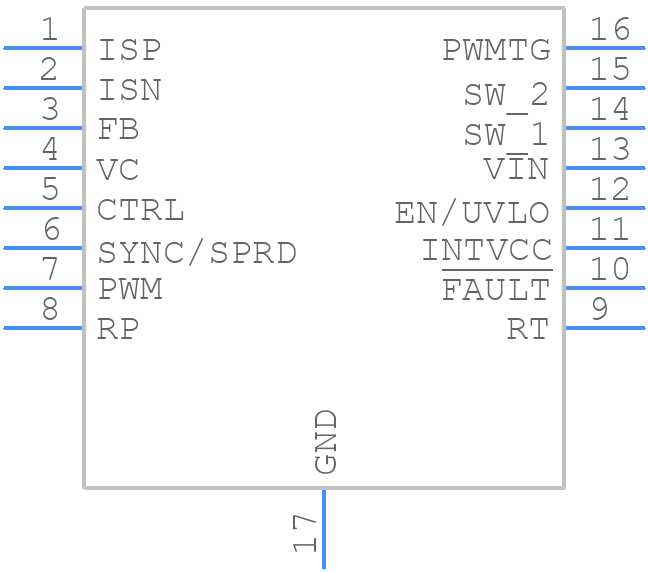

Symbol
LT3950JMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3950JMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic MSOP **-5
click to zoom
3D Models
LT3950JMSE#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic MSOP **-5
click to zoom

LT3950JMSE#PBF Details

  • Manufacturer Part Number:

    LT3950JMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3950JMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LT3950JMSE#PBF near a thermal pad or a heat sink, and ensuring that there are no thermal barriers or obstacles nearby. The datasheet provides a recommended PCB layout, but it's also recommended to consult with a thermal expert or use thermal simulation tools to optimize the design.
  • To ensure reliable start-up and shutdown of the LT3950JMSE#PBF, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, make sure to provide a stable input voltage and ensure that the input capacitance is within the recommended range.
  • Operating the LT3950JMSE#PBF beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even damage to the device. It's essential to ensure that the device operates within the recommended temperature range, input voltage range, and output current range to guarantee reliable operation.
  • To troubleshoot issues with the LT3950JMSE#PBF, start by reviewing the datasheet and application notes to ensure that the device is being used within the recommended operating conditions. Then, use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult with Analog Devices' support team or a qualified engineer if the issue persists.
