LT3950JMSE#WPBF - Analog Devices

Description: 1.2V ~ 60V LED Driver IC 1 Output DC DC Regulator SEPIC, Step-Down (Buck), Step-Up (Boost) PWM Dimming 1.5A 16-MSOP

Download LT3950JMSE#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

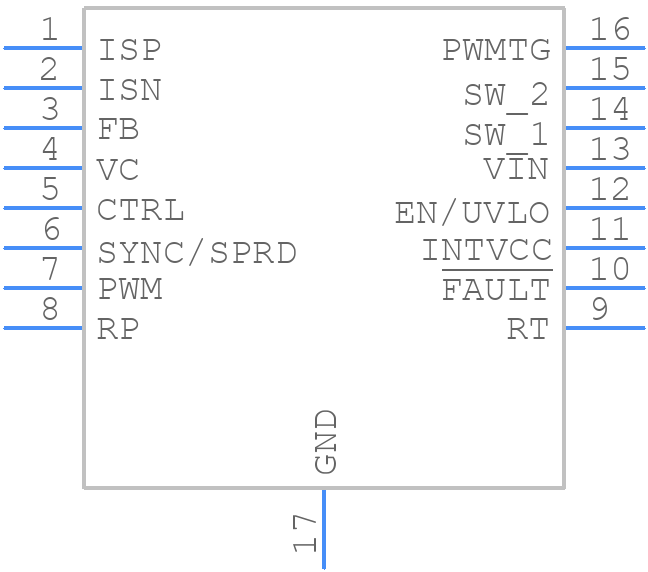

LT3950JMSE#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3950JMSE#WPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP
click to zoom
3D Models
LT3950JMSE#WPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP
click to zoom

LT3950JMSE#WPBF Details

  • Manufacturer Part Number:

    LT3950JMSE#WPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3950JMSE#WPBF Overview

Use the download button to access the LT3950JMSE#WPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT395, or try a keyword search, such as Display Drivers
