LT3952AEFE#PBF - Analog Devices

Description: 4000:1 True Color PWM™ Dimming n 4A, 60V Internal DMOS Switch n Wide Input Voltage Range: 3V to 42V n 0V to 60V Output Current Regulation with Monitor n PMOS Switch Driver for PWM and Output Disconnect n LED Short-Circuit Protection and SHORTLED Flag n Internal Spread Spectrum Frequency Modulation n Constant-Current and Constant-Voltage Regulation n Input Current Limit and Monitor n Adjustable Frequency: 200kHz to 3MHz, Synchronizable to an External Clock

Download LT3952AEFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

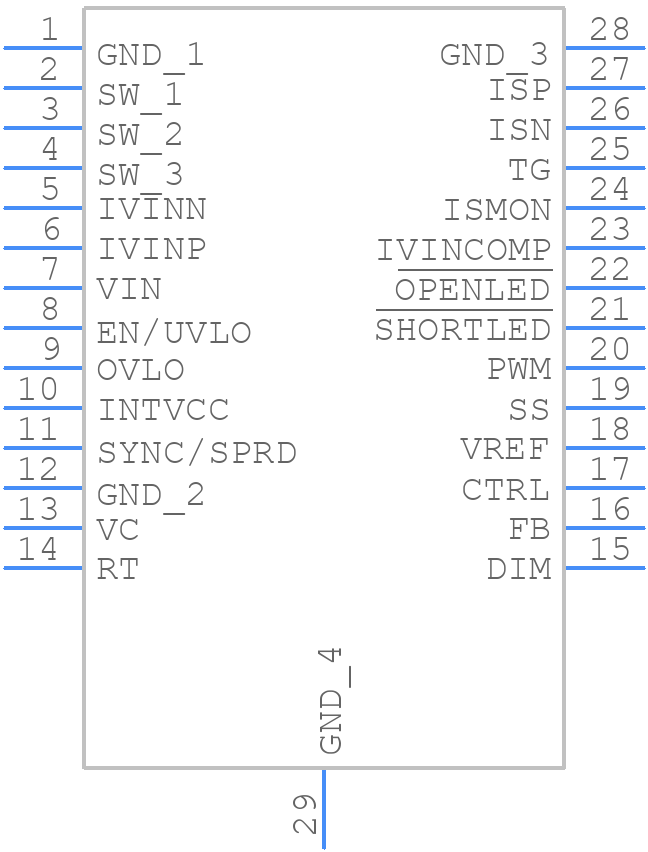

LT3952AEFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3952AEFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LT3952AEFE#PBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom

LT3952AEFE#PBF Details

  • Manufacturer Part Number:

    LT3952AEFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    42 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3952AEFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT3952AEFE can handle is 40V, but it's recommended to operate it within the specified input voltage range of 7V to 36V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to use the recommended output capacitor value and type, and to follow the layout guidelines provided in the datasheet to minimize noise and oscillations.
  • The maximum output current that the LT3952AEFE can deliver is 2A, but it's recommended to operate it within the specified output current range of 0A to 1.5A for optimal performance and reliability.
  • The output voltage of the LT3952AEFE can be programmed using an external resistor divider network connected to the FB pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled and enters a low-power shutdown mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3952AEFE#PBF Overview

Use the download button to access the LT3952AEFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT395, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
