LT3952AHFE#TRPBF - Analog Devices

Description: 60V LED Driver with 4A Switch Current

Download LT3952AHFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

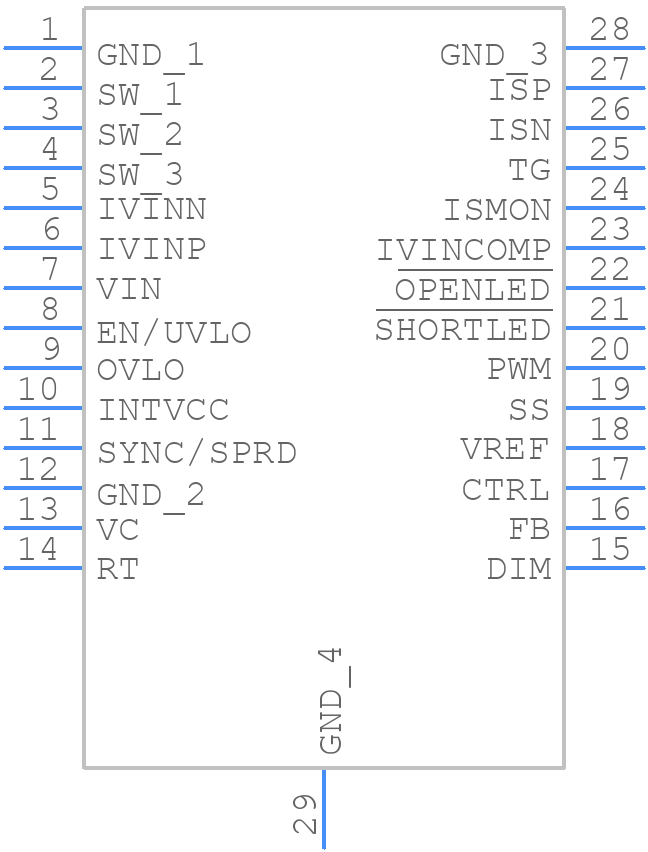

Symbol
LT3952AHFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3952AHFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic TSSOP
click to zoom
3D Models
LT3952AHFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic TSSOP
click to zoom

LT3952AHFE#TRPBF Details

  • Manufacturer Part Number:

    LT3952AHFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    28

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    42 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3952AHFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LT3952AHFE#TRPBF near a thermal pad or a heat sink, and ensuring that there are no thermal barriers between the device and the heat sink. Additionally, using a 2-layer or 4-layer PCB with a solid ground plane can help to dissipate heat more efficiently.
  • To ensure reliable start-up of the LT3952AHFE#TRPBF in a high-voltage application, it is recommended to use a soft-start circuit to limit the inrush current during start-up. This can be achieved by adding a resistor and capacitor in series between the VIN pin and the input voltage source.
  • The maximum allowed voltage on the EN pin of the LT3952AHFE#TRPBF is 6V. Exceeding this voltage may damage the device. It is recommended to use a voltage divider or a clamp circuit to limit the voltage on the EN pin to within the recommended range.
  • To optimize the output voltage ripple of the LT3952AHFE#TRPBF, it is recommended to use a low-ESR output capacitor with a value of at least 10uF. Additionally, adding a small ceramic capacitor in parallel with the output capacitor can help to further reduce the output voltage ripple.
  • The recommended input capacitor type for the LT3952AHFE#TRPBF is a low-ESR ceramic capacitor with a value of at least 10uF. This helps to filter out high-frequency noise and ensure stable operation of the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3952AHFE#TRPBF Overview

Use the download button to access the LT3952AHFE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT395, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
