LT3960EMSE#PBF - Analog Devices

Description: n Protected from Overvoltage Line Faults to ±40V n Up to 400kbps I2C Communications n 4V to 60V Power Supply Range with Internal 3.3V Regulator n 3.3V or 5V Bus Voltage n Extended Common Mode Range (±36V) n Current Limited Drivers with Thermal Shutdown n Power-Up/Down Glitch Free Driver Outputs n Low Current Shutdown Mode n Transmit Data Dominant Timeout Function n E- and J-Grades Available n Available in a 10-Lead MSOP Package n AEC-Q100 Qualified for Automotive Applications

Download LT3960EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

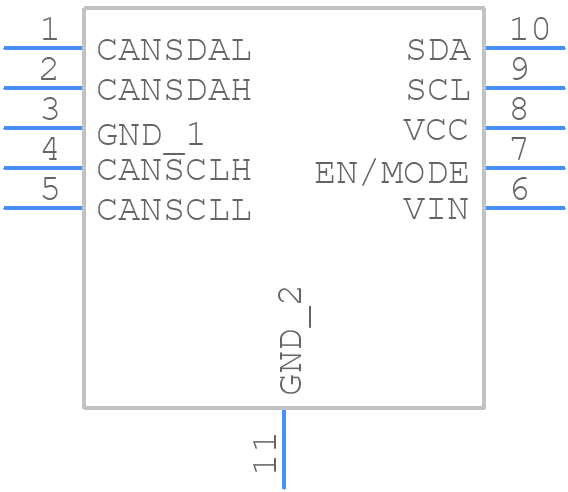

Symbol
LT3960EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3960EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead (3mm × 3mm) Plastic MSOP
click to zoom
3D Models
LT3960EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead (3mm × 3mm) Plastic MSOP
click to zoom

LT3960EMSE#PBF Details

  • Manufacturer Part Number:

    LT3960EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-10-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    400 Mbps

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3960EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3960 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be chosen to ensure that the output impedance is low enough to prevent oscillations. It's also recommended to add a small ceramic capacitor (e.g., 10nF) between the VOUT pin and GND to improve stability.
  • The maximum input voltage that the LT3960 can handle is 15V. However, it's recommended to operate the device within the specified input voltage range (3.5V to 12V) to ensure optimal performance and reliability.
  • The LT3960 is rated for operation up to 125°C. However, it's essential to ensure that the device is properly derated for high-temperature operation to prevent overheating and ensure reliability. The device's power dissipation should be limited to ensure that the junction temperature does not exceed 125°C.
  • The output voltage of the LT3960 can be programmed using an external resistor divider network connected to the VOUT pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage (1.2V). The datasheet provides a formula to calculate the output voltage based on the resistor values.
