SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Supply Current-Max:
6 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
BIPOLAR
Telecom IC Type:
CAN TRANSCEIVER
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LT3960JMSE#PBF Frequently Asked Questions (FAQs)
A good PCB layout for the LT3960 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, avoid using long input and output traces, and keep the feedback network components close to the IC.
The LT3960 is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
Yes, the LT3960 is available in a variety of grades, including the 'MP' grade which is qualified for automotive and high-reliability applications. However, it's essential to consult with Analog Devices Inc. and review the specific requirements for your application.
To troubleshoot issues with the LT3960, start by verifying the input voltage, output voltage, and feedback voltage. Check for any signs of overheating, and ensure that the component values and PCB layout match the recommended design. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. for further support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT3960JMSE#PBF Overview

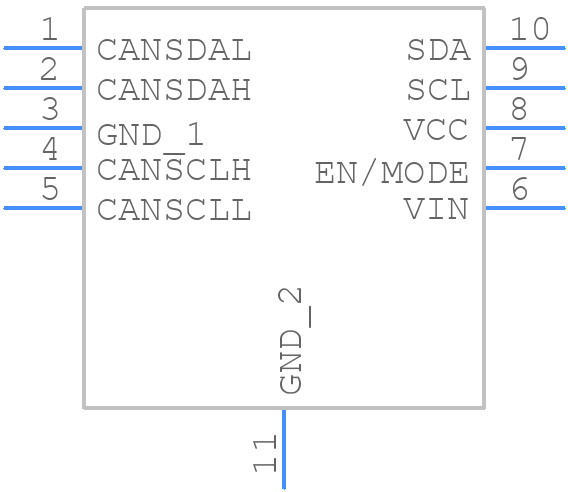

Use the download button to access the LT3960JMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT396,
or try a keyword search, such as Network Interfaces
