LT3966EUJ#PBF - Analog Devices

Description: LED Lighting Drivers 60VIN, 1.5A/60V Power Switch Quad LED Dr

Download LT3966EUJ#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

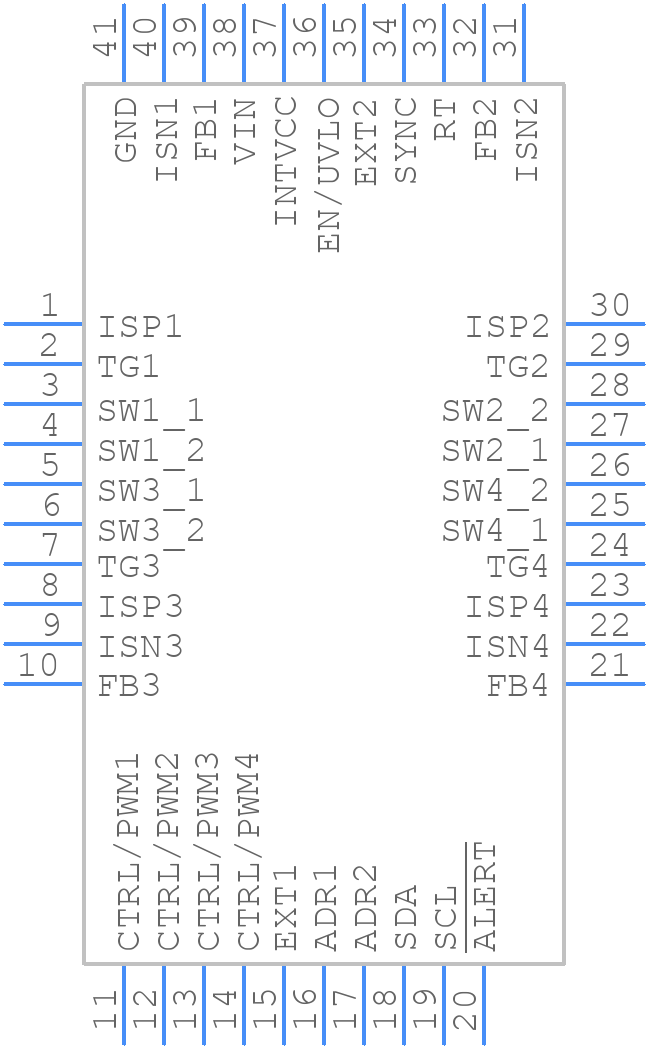

Symbol
LT3966EUJ#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3966EUJ#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UJ Package 40-Lead Plastic QFN (6mm × 6mm) (Reference LTC DWG # 05-08-1728 Rev Ø)
click to zoom
3D Models
LT3966EUJ#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UJ Package 40-Lead Plastic QFN (6mm × 6mm) (Reference LTC DWG # 05-08-1728 Rev Ø)
click to zoom

LT3966EUJ#PBF Details

  • Manufacturer Part Number:

    LT3966EUJ#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-10-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    4

  • Number of Segments:

    48

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LT3966EUJ#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LT3966EUJ#PBF near a thermal pad or a heat sink, and ensuring that there are no thermal barriers between the device and the heat sink. Additionally, using a 2-layer or 4-layer PCB with a solid ground plane can help to dissipate heat more efficiently.
  • To ensure reliable start-up of the LT3966EUJ#PBF, make sure that the input voltage rises monotonically and does not droop during start-up. Also, ensure that the input capacitor is properly sized to handle the inrush current during start-up.
  • The maximum allowed voltage on the EN pin of the LT3966EUJ#PBF is 6V. Exceeding this voltage can cause damage to the device.
  • The LT3966EUJ#PBF is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet for more information on thermal derating.
  • To troubleshoot oscillations or instability in the output voltage of the LT3966EUJ#PBF, check the PCB layout for any parasitic inductance or capacitance that may be causing the issue. Also, ensure that the output capacitor is properly sized and that the feedback loop is properly compensated.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3966EUJ#PBF Overview

Use the download button to access the LT3966EUJ#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT396, or try a keyword search, such as Display Drivers
