LT3966JUJ#PBF - Analog Devices

Description: LED Lighting Driver ICs 60VIN, 1.5A/60V Power Switch Quad LED Dr

Download LT3966JUJ#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

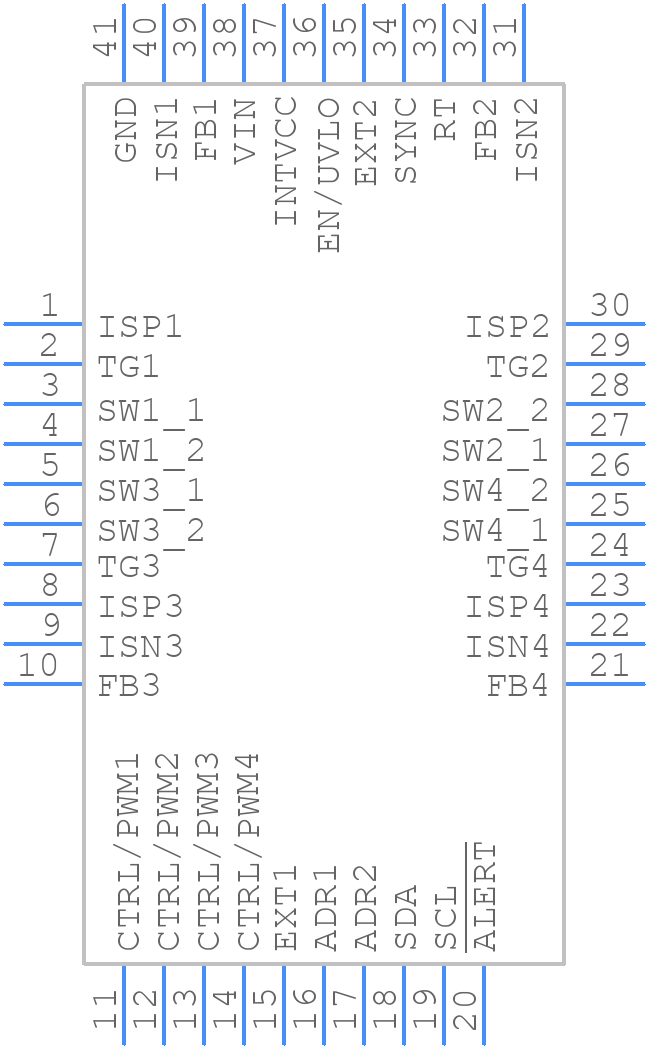

LT3966JUJ#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3966JUJ#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UJ 40-Lead (6mm × 6mm) QFN_2025-1
click to zoom
3D Models
LT3966JUJ#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UJ 40-Lead (6mm × 6mm) QFN_2025-1
click to zoom

LT3966JUJ#PBF Details

  • Manufacturer Part Number:

    LT3966JUJ#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-10-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    4

  • Number of Segments:

    48

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LT3966JUJ#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3966JUJ#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor. It's also recommended to add a small ceramic capacitor (e.g., 10nF) between the VIN pin and GND to filter out high-frequency noise.
  • The LT3966JUJ#PBF has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT3966JUJ#PBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT3966JUJ#PBF, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output. Also, ensure that the device is properly decoupled and that the PCB layout follows the recommended guidelines.
