LT3973IDD-3.3#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3973IDD-3.3#PBF - Buck (Step Down) Switching Regulator, Fixed, 4.2V-42V In, 3.3V And 750mA Out, DFN-10

Download LT3973IDD-3.3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

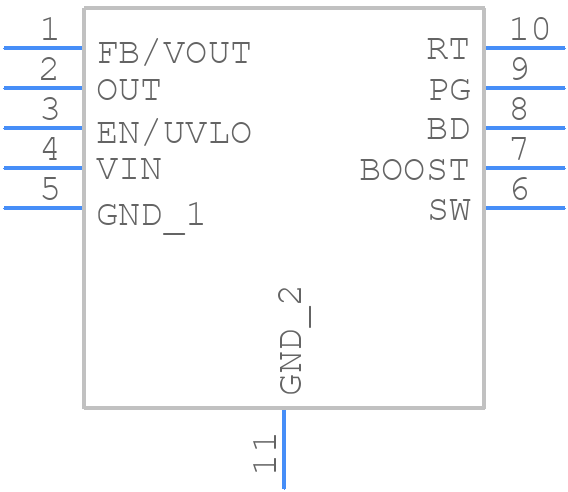

Symbol
LT3973IDD-3.3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3973IDD-3.3#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm ? 3mm)%0
click to zoom
3D Models
LT3973IDD-3.3#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm ? 3mm)%0
click to zoom

LT3973IDD-3.3#PBF Details

  • Manufacturer Part Number:

    LT3973IDD-3.3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR
