A good PCB layout is crucial for the LT3990's performance. Analog Devices recommends a 4-layer board with a solid ground plane, and to keep the input and output capacitors close to the IC. Also, keep the feedback network components close together and away from noisy signals.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. The datasheet recommends a minimum of 10uF for the output capacitor. Also, consider the voltage rating, temperature range, and physical size of the capacitors.
The LT3990IMSE-5#TRPBF is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 100°C to ensure the IC's internal temperature stays within its operating range.
To ensure stability, follow the datasheet's guidelines for component selection and PCB layout. Also, make sure the input and output capacitors are properly sized and placed. Additionally, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to help dampen oscillations.
The LT3990IMSE-5#TRPBF can operate with input voltages from 3.6V to 36V. However, for optimal performance, it's recommended to keep the input voltage between 6V and 24V. This ensures the device operates within its optimal efficiency range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT3990IMSE-5#TRPBF Overview

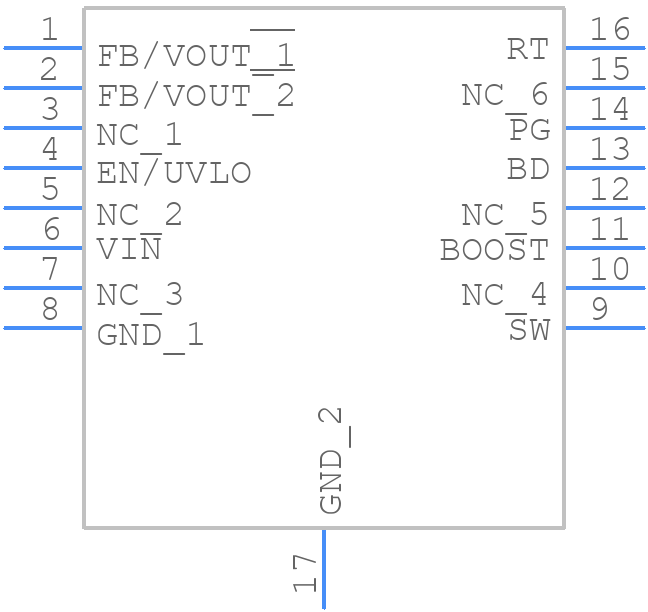

Use the download button to access the LT3990IMSE-5#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT399,
or try a keyword search, such as Switching Regulator or Controllers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
