- Part Number LT3995IMSE#TRPBF
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 16-LEAD PLASTIC MSOP.-1
- Released Date Mar 14, 2022
- Last Modified Date Aug 27, 2024 4:24 AM UTC
- Pinout / Pin List Click Here (Member Only)
LT3995IMSE#TRPBF Details
-
Manufacturer Part Number:
LT3995IMSE#TRPBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LEAD FREE, PLASTIC, MSOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
05-08-1667
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
LT3995IMSE#TRPBF Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LT3995IMSE is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance and reliability.
-
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
-
The maximum output current that the LT3995IMSE can deliver is 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and reliability.
-
The output voltage of the LT3995IMSE can be adjusted by using a resistive divider network between the output and the feedback pin. The output voltage can be calculated using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
-
The thermal shutdown temperature of the LT3995IMSE is typically around 150°C, but it can vary depending on the specific application and operating conditions. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
LT3995IMSE#TRPBF Overview

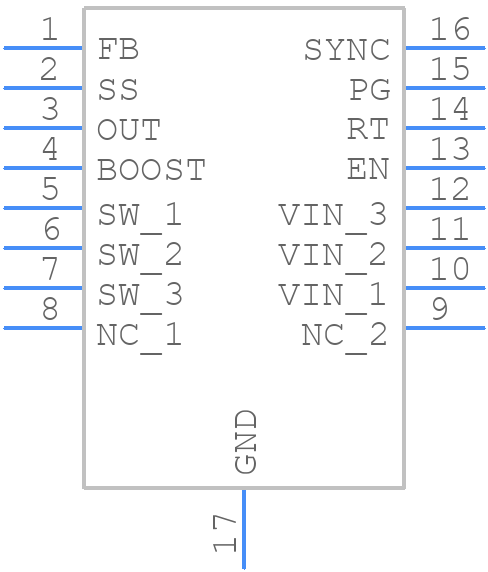

Use the download button to access the LT3995IMSE#TRPBF schematic symbol, PCB footprint, and 3D model.
