LT4275AIDD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT4275AIDD#PBF - POE, IEEE802.3, LTPOE++, 90W, 10DFN

Download LT4275AIDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

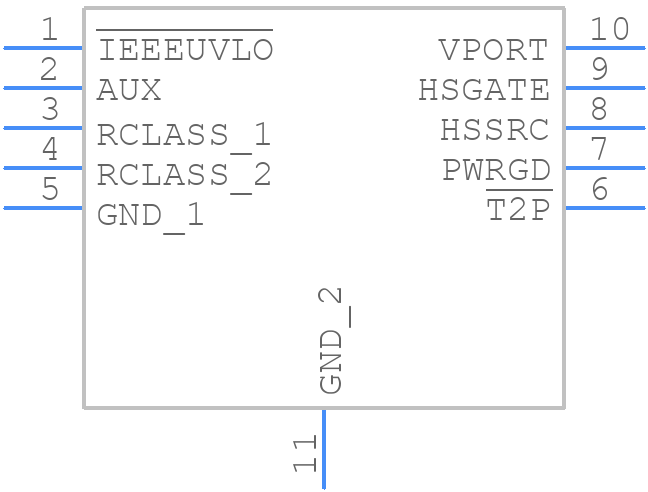

LT4275AIDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4275AIDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Plastic DFN (3mm × 3mm)_2022
click to zoom
3D Models
LT4275AIDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Plastic DFN (3mm × 3mm)_2022
click to zoom

LT4275AIDD#PBF Details

  • Manufacturer Part Number:

    LT4275AIDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

LT4275AIDD#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor's ESR is less than 1 ohm. Also, avoid using ceramic capacitors with high ESL.
  • The maximum ambient temperature range for the LT4275AIDD is -40°C to 125°C. However, the device's performance may degrade at temperatures above 85°C.
  • Yes, the LT4275AIDD is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its reliability.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended range. Also, consider using a TVS diode or a zener diode to protect the device from overvoltage conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4275AIDD#PBF Overview

Use the download button to access the LT4275AIDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT427, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
