LT4293HDD#PBF - Analog Devices

Description: IC POE CNTRL 1 CHANNEL 10DFN

Download LT4293HDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

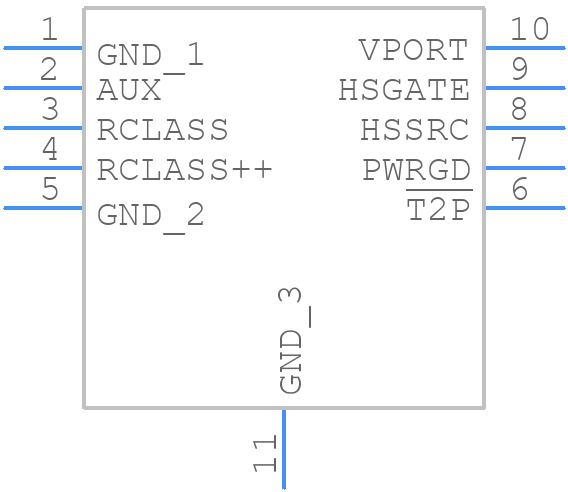

LT4293HDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4293HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LT4293HDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom

LT4293HDD#PBF Details

  • Manufacturer Part Number:

    LT4293HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    17.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT4293HDD#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the input power.
  • Ensure that the output capacitor is within the recommended range (10uF to 100uF) and has a low ESR. Also, make sure the input voltage is within the recommended range (2.7V to 5.5V) and the output current is within the recommended range (up to 2A).
  • The maximum ambient temperature range for the LT4293HDD is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT4293HDD is qualified for automotive and industrial applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems.
  • Check the input voltage, output voltage, and output current to ensure they are within the recommended ranges. Verify that the PCB layout is correct and that there are no noise sources or electromagnetic interference (EMI) issues. Use an oscilloscope to check for oscillations or noise on the output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4293HDD#PBF Overview

Use the download button to access the LT4293HDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT429, or try a keyword search, such as Power Management Circuits
