LT4320IDD#PBF - Analog Devices

Description: Ideal Diode Bridge Controller, DFN-8

Download LT4320IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

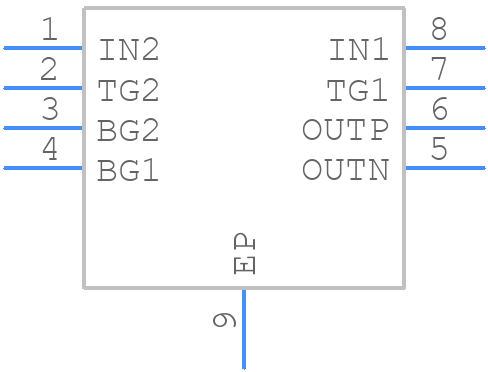

LT4320IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4320IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD(DFN)
click to zoom
3D Models
LT4320IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD(DFN)
click to zoom

LT4320IDD#PBF Details

  • Manufacturer Part Number:

    LT4320IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4320IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4320IDD#PBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LT4320IDD#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device from a low-noise, low-impedance source. The power sequencing requirements are not critical, but it's recommended to power the device after the input voltage has stabilized.
  • The LT4320IDD#PBF has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • To troubleshoot issues with the LT4320IDD#PBF, start by verifying the power supply voltage and ensuring that the input and output capacitors are properly connected. Check for any signs of overheating, and verify that the device is properly soldered to the PCB. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices Inc. support for further assistance.
  • Yes, the LT4320IDD#PBF is a high-frequency device and requires proper EMI/EMC design considerations. It's recommended to use a shielded enclosure, keep the input and output traces short, and use a common-mode choke to reduce EMI emissions. Additionally, ensure that the device is properly decoupled and that the PCB layout is optimized for EMI reduction.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4320IDD#PBF Overview

Use the download button to access the LT4320IDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT432, or try a keyword search, such as Other Signal Circuits
