- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LT4356CS-1#TRPBF
- Part Number LT4356CS-1#TRPBF
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 16-Lead soic
- Released Date Oct 7, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LT4356CS-1#TRPBF Details
-
Manufacturer Part Number:
LT4356CS-1#TRPBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SO-16
-
Pin Count:
16
-
Manufacturer Package Code:
05-08-1610 (S16)
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
LT4356CS-1#TRPBF Frequently Asked Questions (FAQs)
-
A good PCB layout for the LT4356CS-1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR, and that the feedback resistors are properly selected to maintain a stable gain margin.
-
The LT4356CS-1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines to ensure the device operates within a safe temperature range.
-
Yes, the LT4356CS-1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured with high-reliability processes. However, consult the datasheet and Analog Devices' quality and reliability documentation for specific details and requirements.
-
To troubleshoot issues with the LT4356CS-1, start by verifying the input voltage, output voltage, and feedback resistors. Check for proper component values, PCB layout, and soldering quality. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
Community Provided
System Verified
Community Approved
LT4356CS-1#TRPBF Overview

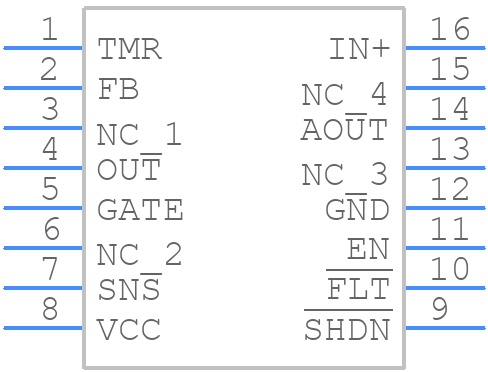

Use the download button to access the LT4356CS-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT435,
or try a keyword search, such as Power Management Circuits
