LT4356CS-2#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT4356CS-2#PBF - Surge Stopper, 4V to 80V supply, 12V/14 mA output, SOIC-16

Download LT4356CS-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

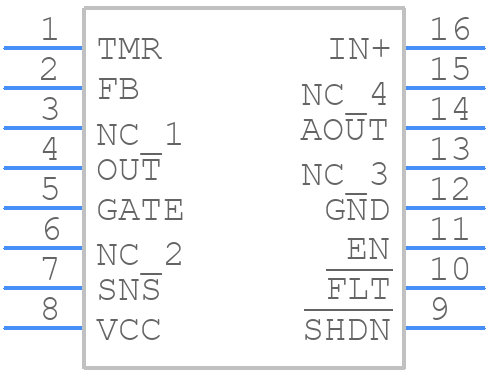

LT4356CS-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4356CS-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LT4356CS-2#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LT4356CS-2#PBF Details

  • Manufacturer Part Number:

    LT4356CS-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    SHDN

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    VSNS:0.05V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LT4356CS-2#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT4356CS-2#PBF is 80V. Exceeding this voltage can cause damage to the device.
  • To ensure proper biasing, the input voltage should be at least 2.5V above the output voltage, and the output voltage should be set to the desired value using the feedback resistors. Additionally, the input capacitor should be selected to ensure stability and optimal performance.
  • To minimize noise and EMI, the LT4356CS-2#PBF should be placed close to the input capacitors and the output filter components. The input and output traces should be kept short and away from noise sources. A solid ground plane and proper decoupling capacitors are also recommended.
  • To troubleshoot issues with the LT4356CS-2#PBF, check the input and output voltages, and ensure that the device is properly biased and configured. Check for oscillations or instability by monitoring the output voltage with an oscilloscope. Verify that the input and output capacitors are properly selected and placed.
  • The LT4356CS-2#PBF is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to consult the datasheet and application notes for guidance on using the device in high-temperature applications.
