LT4356HDE-3#PBF - Analog Devices

Description: Surge Suppressors Overvoltage Protection Regulator with Latch-off

Download LT4356HDE-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

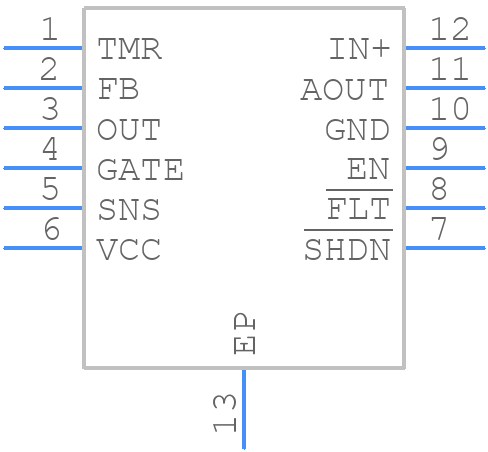

Symbol
LT4356HDE-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4356HDE-3#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead (3mm × 4mm) Plastic DFN
click to zoom
3D Models
LT4356HDE-3#PBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead (3mm × 4mm) Plastic DFN
click to zoom

LT4356HDE-3#PBF Details

  • Manufacturer Part Number:

    LT4356HDE-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    LATCH OFF

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.05V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4356HDE-3#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT4356HDE-3#PBF is 80V. Exceeding this voltage can cause damage to the device.
  • To ensure proper biasing, the input voltage should be at least 2.5V above the output voltage, and the output voltage should be set to the desired level using the feedback resistors. Additionally, the input capacitor should be selected to ensure stability and optimal performance.
  • To minimize noise and EMI, it is recommended to place the LT4356HDE-3#PBF close to the input capacitors and output filter components. The input and output traces should be kept short and away from noise sources. A solid ground plane and proper decoupling capacitors can also help reduce noise and EMI.
  • The output inductor should be selected based on the output current and voltage requirements. A higher inductance value can provide better filtering, but may also increase the size and cost of the inductor. The inductor should also be rated for the maximum output current and voltage of the LT4356HDE-3#PBF.
  • The thermal derating of the LT4356HDE-3#PBF is typically around 1.5%/°C. This means that the device's performance will degrade as the temperature increases. It is essential to ensure proper heat sinking and thermal management to maintain optimal performance and prevent overheating.
