LT4356HS-3#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT4356HS-3#PBF - Surge Stopper, 4V to 80V supply, SOIC-16

Download LT4356HS-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

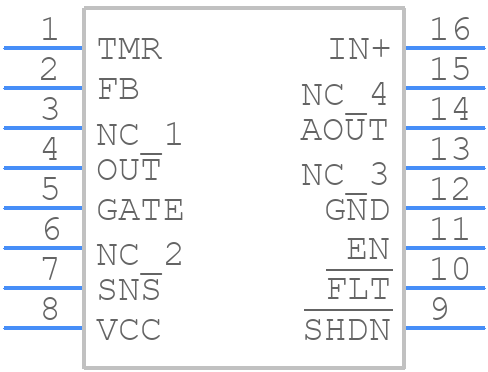

LT4356HS-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4356HS-3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-LEAD_S(SOIC)
click to zoom
3D Models
LT4356HS-3#PBF - Analog Devices - 3D model - Small Outline Packages - 16-LEAD_S(SOIC)
click to zoom

LT4356HS-3#PBF Details

  • Manufacturer Part Number:

    LT4356HS-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    LATCH OFF

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.05V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT4356HS-3#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT4356HS-3#PBF is 80V, but it's recommended to operate within the specified input voltage range of 10V to 60V for optimal performance and reliability.
  • To ensure proper biasing, connect the VIN pin to a voltage source within the recommended input voltage range, and connect the EN pin to a logic-level signal (e.g., 0V or 5V) to enable or disable the device. Additionally, ensure the input capacitor is properly sized and placed close to the VIN pin.
  • For optimal performance, place the LT4356HS-3#PBF near the input capacitors and keep the input and output traces short and wide. Avoid routing sensitive signals near the device's switching nodes. Follow the recommended PCB layout guidelines in the datasheet and application notes.
  • Choose an input capacitor with a voltage rating that exceeds the maximum input voltage, and a capacitance value that meets the recommended range (e.g., 10uF to 100uF). Consider the capacitor's ESR, temperature rating, and physical size when making your selection.
  • The LT4356HS-3#PBF can deliver up to 3A of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. Ensure the device is properly heatsinked and operated within the recommended operating conditions.
