- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LT4356MPS-1
- Part Number LT4356MPS-1
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-16N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LT4356MPS-1 Details
-
Manufacturer Part Number:
LT4356MPS-1
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
SOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
05-08-1610 (S16)
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Analog Devices Inc
LT4356MPS-1 Frequently Asked Questions (FAQs)
-
A good PCB layout for the LT4356MPS-1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a Kelvin connection for the sense pins to reduce noise and improve accuracy.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, check that the input and output capacitors are of sufficient value and that the sense resistors are properly connected. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the VOUT pin and GND to improve stability.
-
The LT4356MPS-1 can handle input voltages up to 80V, but it's recommended to operate within the specified maximum rating of 60V to ensure reliable operation and prevent damage to the device.
-
The LT4356MPS-1 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or thermal management system to keep the device within its specified operating temperature range.
-
To troubleshoot issues with the LT4356MPS-1, start by checking the input voltage, output voltage, and sense pins for proper connections and values. Verify that the device is properly configured and that the recommended component values are used. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
System Verified
LT4356MPS-1 Overview

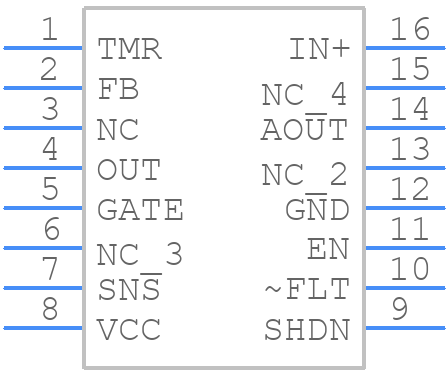

Use the download button to access the LT4356MPS-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT435,
or try a keyword search, such as Power Management Circuits
