- Stock & Prices $ Price & Stock for LT4363CMS-2#PBF
- Part Number LT4363CMS-2#PBF
- Manufacturer Analog Devices
- Pin Count 12
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 12-Lead Plastic MSOP
- Released Date Oct 20, 2020
- Last Modified Date Aug 27, 2024 6:12 AM UTC
- Pinout / Pin List Click Here (Member Only)
LT4363CMS-2#PBF Details
-
Manufacturer Part Number:
LT4363CMS-2#PBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MSOP-12
-
Pin Count:
12
-
Manufacturer Package Code:
05-08-1668
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
LT4363CMS-2#PBF Frequently Asked Questions (FAQs)
-
A good PCB layout for the LT4363CMS-2#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper biasing, connect the EN pin to a 1.2V to 5.5V voltage source, and the VIN pin to a voltage source within the recommended operating range. Also, ensure the input voltage is within the recommended range and the output voltage is set correctly using the FB pin.
-
The LT4363CMS-2#PBF has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To minimize thermal issues, ensure good airflow, use a heat sink if necessary, and avoid high ambient temperatures.
-
To troubleshoot issues, check the input and output voltages, ensure the EN pin is properly biased, and verify the FB pin is correctly set. Also, check for short circuits, overheating, and incorrect component values.
-
To minimize EMI, use a shielded inductor, keep the input and output traces short, and use a common-mode choke or ferrite bead on the input and output lines. Also, ensure the PCB layout is optimized for EMI reduction.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
LT4363CMS-2#PBF Overview

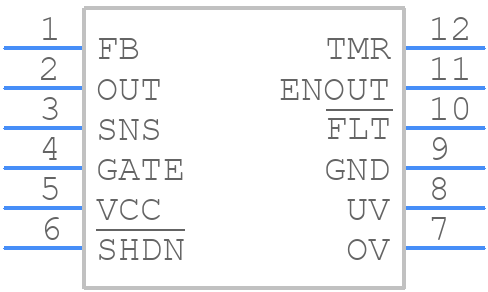

Use the download button to access the LT4363CMS-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT436,
or try a keyword search, such as Power Management Circuits
