LT4363CS-1#PBF - Analog Devices

Description: High Voltage Surge Stopper with Current Limit

Download LT4363CS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

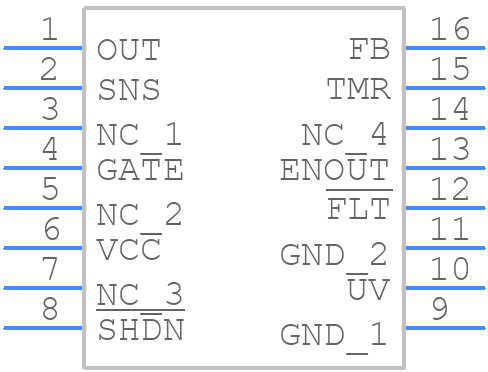

LT4363CS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363CS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 LEAD
click to zoom
3D Models
LT4363CS-1#PBF - Analog Devices - 3D model - Small Outline Packages - 16 LEAD
click to zoom

LT4363CS-1#PBF Details

  • Manufacturer Part Number:

    LT4363CS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT4363CS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363CS-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane is recommended. Refer to the LT4363 demo board layout for a reference design.
  • Choose input capacitors with low ESR and high ripple current rating. X5R or X7R ceramic capacitors are recommended. For output capacitors, select ones with low ESR and high capacitance. A minimum of 10uF output capacitance is recommended. Refer to the datasheet for more information on capacitor selection.
  • The LT4363CS-1#PBF can handle input voltages up to 80V, but it's recommended to limit the input voltage to 60V for optimal performance and reliability.
  • The LT4363CS-1#PBF has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by adjusting the voltage divider ratio. Refer to the datasheet for more information on OVP implementation.
  • The typical startup time of the LT4363CS-1#PBF is around 1ms, but it can vary depending on the input voltage, output capacitance, and other factors. Refer to the datasheet for more information on startup time.
