LT4363HDE-2#PBF - Analog Devices

Description: High Voltage Surge Stopper with Current Limit

Download LT4363HDE-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

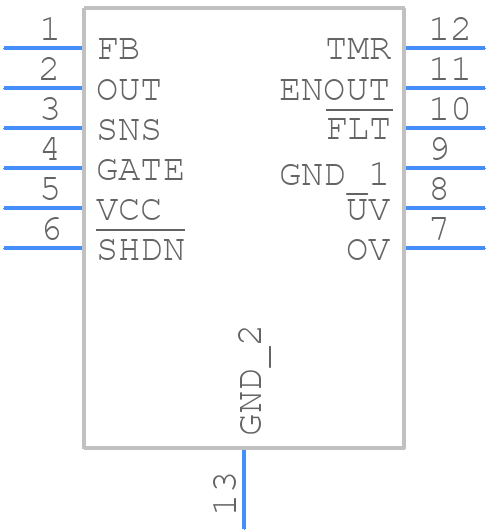

LT4363HDE-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4363HDE-2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LT4363HDE-2#PBF - Analog Devices - 3D model - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)
click to zoom

LT4363HDE-2#PBF Details

  • Manufacturer Part Number:

    LT4363HDE-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.275

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4363HDE-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4363HDE-2#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the input and output capacitors are properly selected and placed close to the device. Also, ensure that the input voltage is within the recommended range, and the output voltage is set correctly. Additionally, a minimum ESR of 0.1 ohms is recommended for the output capacitor.
  • The maximum ambient temperature range for the LT4363HDE-2#PBF is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT4363HDE-2#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow the recommended operating conditions and design guidelines to ensure optimal performance and reliability.
  • To troubleshoot issues with the LT4363HDE-2#PBF, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are properly selected and placed. Check for any signs of overheating, and ensure that the device is operated within the recommended operating conditions.
