LT5400ACMS8E-4#TRPBF - Analog Devices

Description: Resistor Networks & Arrays Matched Resistor Network, Dual 1k/1k

Download LT5400ACMS8E-4#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

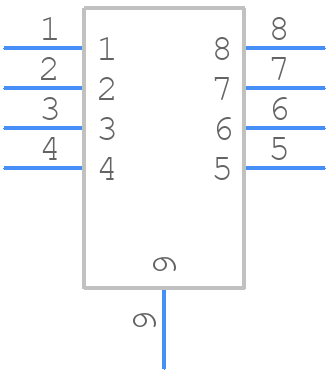

LT5400ACMS8E-4#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5400ACMS8E-4#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LT5400ACMS8E-4#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LT5400ACMS8E-4#TRPBF Details

  • Manufacturer Part Number:

    LT5400ACMS8E-4#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Element Power Dissipation:

    0.8 W

  • First Element Resistance:

    1000 Ω

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Second/Last Element Resistance:

    1000 Ω

  • Size Code:

    1212

  • Surface Mount:

    YES

  • Temperature Coefficient:

    25 ppm/°C

  • Temperature Coefficient Tracking:

    1 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Shape:

    GULL WING

  • Tolerance:

    7.5%

  • Working Voltage:

    75 V
