LT5401AHMSE#PBF - Analog Devices

Description: Matched Resistor Network for Precision Amplifiers

Download LT5401AHMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

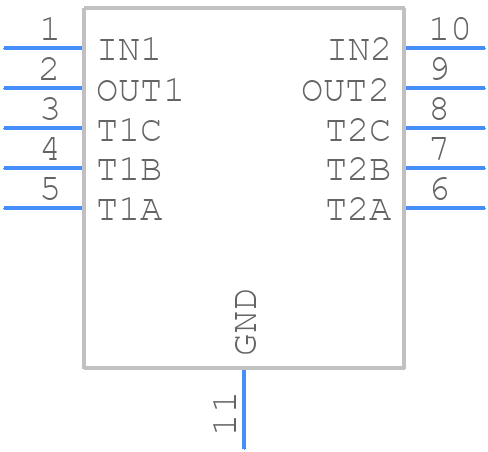

LT5401AHMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5401AHMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom
3D Models
LT5401AHMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom

LT5401AHMSE#PBF Details

  • Manufacturer Part Number:

    LT5401AHMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    93 dB

  • Frequency Compensation:

    NO

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -36 V

  • Neg Supply Voltage-Nom (Vsup):

    -35 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    35 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3 mm

LT5401AHMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT5401AHMSE involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog signals.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and take corrective action if necessary.
  • To minimize EMI, it's recommended to use a shielded enclosure, keep the input and output cables short and shielded, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, consider using a spread-spectrum clock or frequency hopping to reduce EMI emissions.
  • Yes, the LT5401AHMSE can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and that the input and output capacitors are suitable for high-frequency operation. Additionally, consider using a switching regulator controller IC that is compatible with the LT5401AHMSE.
  • To troubleshoot common issues with the LT5401AHMSE, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the input and output capacitors are properly selected and that the device is properly bypassed. If the issue persists, consider using a scope or frequency analyzer to identify the source of the problem and take corrective action.
