LT5401AIMSE#PBF - Analog Devices

Description: Matched Resistor Network for Precision Amplifiers

Download LT5401AIMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

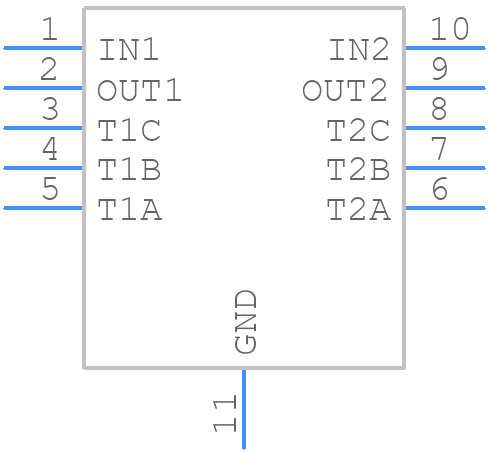

LT5401AIMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5401AIMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom
3D Models
LT5401AIMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom

LT5401AIMSE#PBF Details

  • Manufacturer Part Number:

    LT5401AIMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    94 dB

  • Frequency Compensation:

    NO

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -36 V

  • Neg Supply Voltage-Nom (Vsup):

    -35 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    35 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3 mm

LT5401AIMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT5401 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure reliability in high-temperature applications, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. The LT5401 is rated for operation up to 125°C, but derating may be necessary for extended operation at high temperatures.
  • The maximum input voltage that can be applied to the LT5401 is 12V. Exceeding this voltage can cause damage to the device. It is essential to ensure that the input voltage is within the recommended range to prevent damage and ensure reliable operation.
  • Troubleshooting issues with the LT5401 involves following a systematic approach. First, ensure that the device is properly powered and that the input and output voltages are within the recommended range. Check the PCB layout and ensure that it follows the recommended layout and land pattern. Use an oscilloscope to measure the input and output waveforms and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • Yes, the LT5401 can be used in automotive applications. It is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it is essential to ensure that the device is used within its recommended operating conditions and that proper thermal management and PCB layout practices are followed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT5401AIMSE#PBF Overview

Use the download button to access the LT5401AIMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT540, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
