LT5401HMSE#PBF - Analog Devices

Description: Matched Resistor Network for Precision Amplifiers

Download LT5401HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

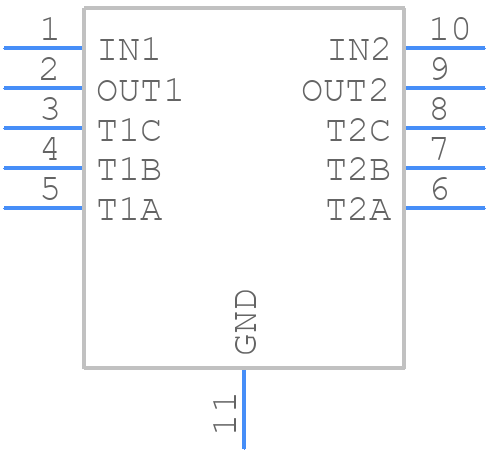

LT5401HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5401HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom
3D Models
LT5401HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom

LT5401HMSE#PBF Details

  • Manufacturer Part Number:

    LT5401HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    89 dB

  • Frequency Compensation:

    NO

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -36 V

  • Neg Supply Voltage-Nom (Vsup):

    -35 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    35 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3 mm

LT5401HMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT5401HMSE involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog circuitry.
  • To ensure the LT5401HMSE operates within its recommended operating conditions, verify that the input voltage is within the specified range (2.7V to 5.5V), the ambient temperature is within the specified range (-40°C to 125°C), and the output current is within the specified range (up to 20mA). Also, ensure that the device is not exposed to excessive moisture or humidity.
  • The typical start-up time of the LT5401HMSE is around 100μs, but this can vary depending on the input voltage, output load, and other factors. It's recommended to consult the datasheet and application notes for more information on start-up time and how to optimize it for your specific application.
  • Yes, the LT5401HMSE is designed to meet the requirements of high-reliability and high-temperature applications. It's qualified to the automotive AEC-Q100 standard and is suitable for use in temperatures up to 125°C. However, it's recommended to consult the datasheet and application notes for specific guidance on using the device in these types of applications.
  • To troubleshoot issues with the LT5401HMSE, start by verifying that the input voltage and output load are within the specified ranges. Check for any signs of physical damage or contamination on the device or PCB. Use an oscilloscope to measure the output voltage and verify that it's within the specified range. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT5401HMSE#PBF Overview

Use the download button to access the LT5401HMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT540, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
