LT5401IMSE#PBF - Analog Devices

Description: Matched Resistor Network for Precision Amplifiers

Download LT5401IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

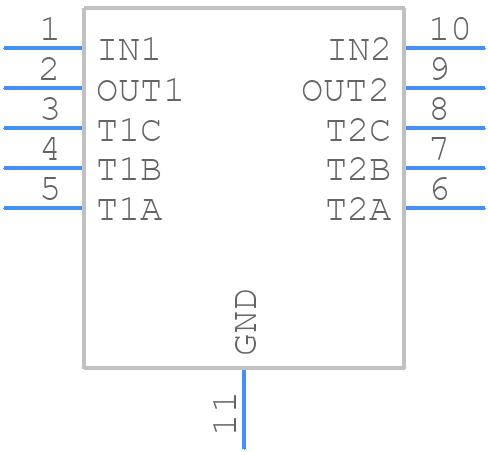

Symbol
LT5401IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5401IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom
3D Models
LT5401IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1664 Rev I)
click to zoom

LT5401IMSE#PBF Details

  • Manufacturer Part Number:

    LT5401IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    91 dB

  • Frequency Compensation:

    NO

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -36 V

  • Neg Supply Voltage-Nom (Vsup):

    -35 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    35 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3 mm

LT5401IMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT5401IMSE involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the sense pins to minimize errors.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be mounted in a way that minimizes thermal coupling to other components.
  • The maximum allowed voltage on the input pins of the LT5401IMSE is 6V. Exceeding this voltage can damage the device. It's recommended to use voltage limiting resistors or clamping diodes to protect the device from overvoltage conditions.
  • Yes, the LT5401IMSE is designed to operate in high-reliability and high-temperature applications. It's qualified for automotive and industrial applications, and it can operate up to 150°C junction temperature. However, it's essential to follow the recommended derating guidelines for high-temperature operation.
  • Common issues with the LT5401IMSE can be troubleshooted by checking the PCB layout, ensuring proper power supply decoupling, and verifying the input and output connections. Additionally, it's recommended to check for oscillations or ringing on the output, and to ensure that the device is operated within its recommended specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT5401IMSE#PBF Overview

Use the download button to access the LT5401IMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT540, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
