LT5522EUF#PBF - Analog Devices

Description: Downconverter Mixer,LT5522 600-2700MHz LT5522EUF#PBF, Downconverter & Mixer 1000MHz Gain=-0.7 dB 4.5 → 5.25 V 16-Pin QFN EP

Download LT5522EUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

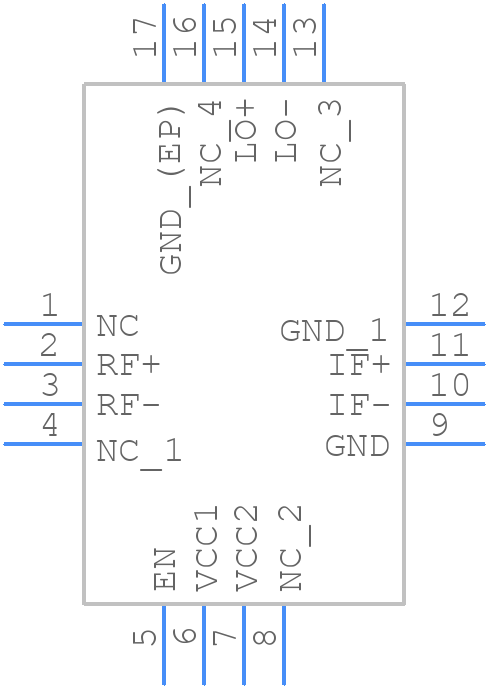

Symbol
LT5522EUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5522EUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF(QFN)_1
click to zoom
3D Models
LT5522EUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UF(QFN)_1
click to zoom

LT5522EUF#PBF Details

  • Manufacturer Part Number:

    LT5522EUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1692

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e3

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    Matte Tin (Sn)

LT5522EUF#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure that the output capacitor is of high quality and has a low ESR. Also, add a 10nF capacitor in parallel with the output capacitor to improve stability. Additionally, keep the input and output voltage rails clean and decoupled.
  • The maximum input voltage is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation and to prevent damage to the device.
  • The LT5522EUF is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's specifications accordingly.
  • Use an oscilloscope to check the input and output waveforms for signs of oscillation or instability. Verify that the input voltage is within the recommended range and that the output capacitor is of high quality. Check for any signs of overheating or physical damage to the device.
