LT6005IGNPBF - Analog Devices

Description: Wide Supply Range: 1.6V to 16V n Low Supply Current: 1µA/Amplifier Max n Low Input Bias Current: 90pA Max n Low Input Offset Voltage: 500µV Max n Low Input Offset Voltage Drift: 2µV/°C n CMRR: 100dB n PSRR: 95dB n AVOL Driving 20kΩ Load: 100,000 Min n Capacitive Load Handling: 500pF n Specified from –40°C to 125°C n Available in Tiny 2mm × 2mm DFN and Low Profile (1mm) ThinSOT™ Packages

Download LT6005IGNPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

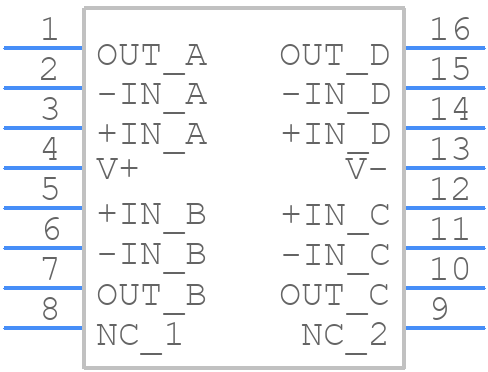

LT6005IGNPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6005IGNPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Reference LTC DWG # 05-08-1641)..
click to zoom
3D Models
LT6005IGNPBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Reference LTC DWG # 05-08-1641)..
click to zoom

LT6005IGNPBF Details

  • Manufacturer Part Number:

    LT6005IGNPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT6005IGNPBF Overview

Use the download button to access the LT6005IGNPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT600, or try a keyword search, such as Operational Amplifiers
