LT6011CDD#PBF - Analog Devices

Description: Precision Amplifiers Dual Micropower Precision R-to-R Output OA

Download LT6011CDD#PBF Model

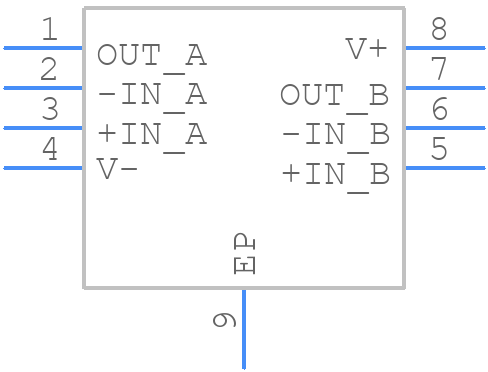

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6011CDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT6011CDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT6011CDD#PBF Details

  • Manufacturer Part Number:

    LT6011CDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Bias Current-Max (IIB) @25C:

    0.0018 µA

  • Common-mode Reject Ratio-Min:

    109 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.08 V/us

  • Slew Rate-Nom:

    0.11 V/us

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    350

  • Voltage Gain-Min:

    600000

  • Wideband:

    NO

  • Width:

    3 mm

LT6011CDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6011 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and component values, and to ensure that the output capacitor is properly sized. Additionally, the input and output resistors should be chosen to minimize noise and oscillations.
  • The maximum power dissipation of the LT6011 is dependent on the package type and the ambient temperature. The power dissipation can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. It's essential to ensure that the device does not exceed the maximum junction temperature of 150°C.
  • Yes, the LT6011 can be used as a voltage regulator, but it's essential to ensure that the output voltage is within the recommended range of 1.2V to 36V. Additionally, the device may not be suitable for high-current applications, and the output voltage may not be as stable as a dedicated voltage regulator.
  • To protect the LT6011 from input voltage transients and overvoltage conditions, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode at the input. Additionally, a fuse or a current-limiting resistor can be used to prevent damage from overcurrent conditions.
