LT6017MPDJC#TRPBF - Analog Devices

Description: Op Amp Quad Low Power Amplifier R-R I/O ±15V/30V Automotive 22-Pin DFN EP T/R

Download LT6017MPDJC#TRPBF Model
Schematic
symbols

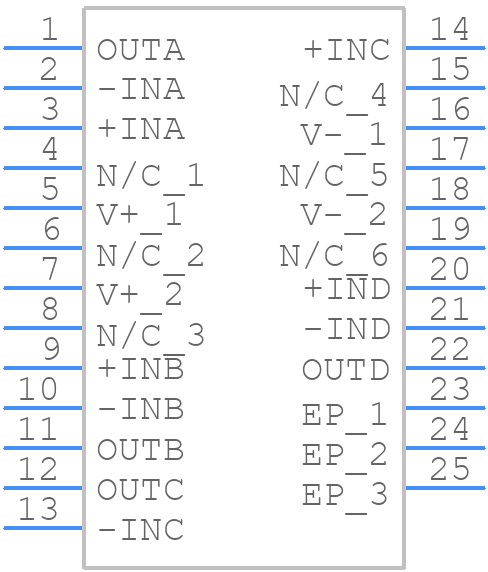

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6017MPDJC#TRPBF - Analog Devices PCB footprint - Other - Other - DJC PACKAGE 22-LEAD (6mm × 3mm) PLASTIC DFN
click to zoom
3D Models
LT6017MPDJC#TRPBF - Analog Devices  - 3D model - Other - DJC PACKAGE 22-LEAD (6mm × 3mm) PLASTIC DFN
click to zoom

LT6017MPDJC#TRPBF Details

  • Manufacturer Part Number:

    LT6017MPDJC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 3 MM, LEAD FREE, PLASTIC, MO-229WXXX, DFN-22

  • Pin Count:

    22

  • Manufacturer Package Code:

    05-08-1714

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    126 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    R-PDSO-N22

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -25 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC22,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.5 V/us

  • Slew Rate-Nom:

    0.8 V/us

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage Limit-Max:

    30 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3300

  • Voltage Gain-Min:

    200000

  • Wideband:

    NO

  • Width:

    3 mm
