LT6211CMS#PBF - Analog Devices

Description: LT6211CMS#PBF, Dual Operational Amplifier Current Feedback Rail-Rail, 5 V, 9 V, 10-Pin MSOP

Download LT6211CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

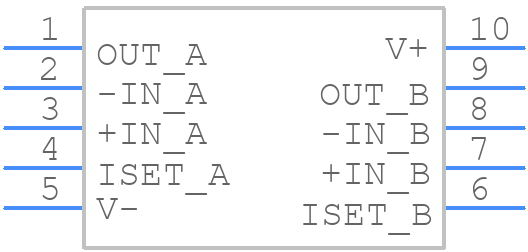

Symbol
LT6211CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6211CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS10(MSOP)
click to zoom
3D Models
LT6211CMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS10(MSOP)
click to zoom

LT6211CMS#PBF Details

  • Manufacturer Part Number:

    LT6211CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Common-mode Reject Ratio-Min:

    43 dB

  • Common-mode Reject Ratio-Nom:

    50 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    170 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    6.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    YES

  • Width:

    3 mm

LT6211CMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6211 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog circuitry.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to maintain a stable input voltage and a low impedance output. Additionally, the device should be operated within its recommended operating conditions, and the output should not be overloaded.
  • The maximum power dissipation of the LT6211 is dependent on the package type and the ambient temperature. For the MSOP package, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
  • Yes, the LT6211 can be used as a unity-gain buffer by connecting the output directly to the input and setting the gain resistors to zero ohms. However, it's essential to ensure that the output is not overloaded and that the device is operated within its recommended operating conditions.
  • The output noise of the LT6211 can be calculated using the equation: Vnout = √(Vn_in^2 + (I_n_in * R_in)^2), where Vn_in is the input noise voltage, I_n_in is the input noise current, and R_in is the input resistance. The input noise voltage and current can be found in the datasheet.
