LT6370AHS8E#PBF - Analog Devices

Description: 25?V, 0.3?V/?C, Low Noise Instrumentation Amplifier

Download LT6370AHS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

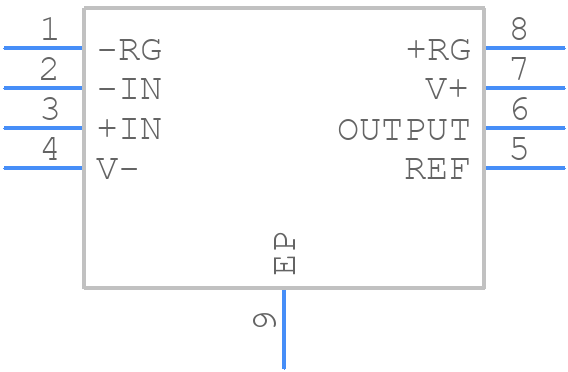

Symbol
LT6370AHS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6370AHS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch) Exposed Pad
click to zoom
3D Models
LT6370AHS8E#PBF - Analog Devices - 3D model - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch) Exposed Pad
click to zoom

LT6370AHS8E#PBF Details

  • Manufacturer Part Number:

    LT6370AHS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1857

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bandwidth (3dB)-Nom:

    3.1 MHz

  • Common-mode Reject Ratio-Min:

    94 dB

  • Input Offset Current-Max (IIO):

    0.7 µA

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.027%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    2.75 mA

  • Supply Voltage Limit-Max:

    35 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    5.8 mm

LT6370AHS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6370AHS8E involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to maintain a stable input voltage and minimize noise injection. Additionally, the device's output should be decoupled with a capacitor to prevent oscillations.
  • The LT6370AHS8E has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of industrial and automotive applications.
  • Yes, the LT6370AHS8E is designed to meet the requirements of high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. It has been qualified to various industry standards, including AEC-Q100 and IEC 60601-1.
  • To troubleshoot common issues, start by verifying the PCB layout and component values, ensuring that they match the recommended values in the datasheet. Next, check the input and output voltage levels, as well as the device's operating temperature. If issues persist, consult the device's application notes and seek support from Analog Devices' technical team.
