LT6370HDD#TRPBF - Analog Devices

Description: 25?V, 0.3?V/?C, Low Noise Instrumentation Amplifier

Download LT6370HDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

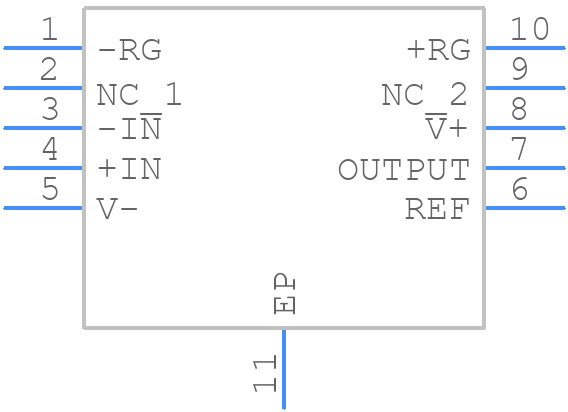

Symbol
LT6370HDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6370HDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT6370HDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT6370HDD#TRPBF Details

  • Manufacturer Part Number:

    LT6370HDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0008 µA

  • Bandwidth (3dB)-Nom:

    3.1 MHz

  • Common-mode Reject Ratio-Min:

    88 dB

  • Input Offset Current-Max (IIO):

    0.0014 µA

  • Input Offset Voltage-Max:

    60 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.037%

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    2.75 mA

  • Supply Voltage Limit-Max:

    35 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    3 mm

LT6370HDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6370HDD involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the compensation guidelines provided in the datasheet and application notes. This includes selecting the correct compensation components, such as resistors and capacitors, and placing them in the correct locations. Additionally, it's essential to ensure that the input and output capacitors are of high quality and have low ESR.
  • The LT6370HDD has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • Yes, the LT6370HDD is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process, and it's available in a variety of grades, including the 'H' grade, which is specifically designed for high-reliability applications. However, it's essential to follow the recommended design and testing procedures to ensure the device meets the required reliability standards.
  • To troubleshoot common issues with the LT6370HDD, it's essential to follow a systematic approach. This includes checking the PCB layout, ensuring that the input and output capacitors are of high quality, and verifying that the compensation components are correct. Additionally, it's helpful to use simulation tools, such as SPICE, to model the circuit and identify potential issues. Analog Devices also provides a range of application notes and technical support resources to help troubleshoot common issues.
