LT6370HS8E#TRPBF - Analog Devices

Description: Instrumentation Amplifiers Low Drift, Low Noise Instrumentation Amp

Download LT6370HS8E#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

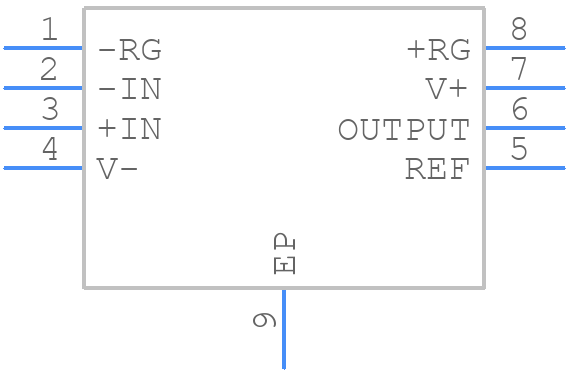

Symbol
LT6370HS8E#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6370HS8E#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch)
click to zoom
3D Models
LT6370HS8E#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch)
click to zoom

LT6370HS8E#TRPBF Details

  • Manufacturer Part Number:

    LT6370HS8E#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1857

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bandwidth (3dB)-Nom:

    3.1 MHz

  • Common-mode Reject Ratio-Min:

    88 dB

  • Input Offset Current-Max (IIO):

    0.001 µA

  • Input Offset Voltage-Max:

    55 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.037%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    2.75 mA

  • Supply Voltage Limit-Max:

    35 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    5.8 mm

LT6370HS8E#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6370HS8E involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to maintain a stable input voltage and minimize noise injection. Additionally, the device's output should be decoupled with a capacitor to prevent oscillations.
  • The LT6370HS8E is rated for operation from -40°C to 125°C, but it's essential to consider the device's thermal characteristics and ensure proper heat sinking to maintain reliable operation.
  • Yes, the LT6370HS8E is a high-reliability device that meets the requirements of various industries, including aerospace, automotive, and industrial. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device's reliability and performance.
  • To troubleshoot issues with the LT6370HS8E, start by verifying the device's input and output voltages, as well as the compensation network and component values. Check for noise injection, ensure proper decoupling, and verify the device's thermal characteristics. If issues persist, consult the datasheet and application notes or contact Analog Devices' support team.
